Hager The Hager Allure 4 Gang Switch Plate with mechanisms provides reliable multi-circuit control for homes and light commercial sites. Rated 16 A, 50 Hz, it supports 2-way switching with loop terminal via screw terminals. Flush-mounted, 15 mm depth, screw-fastened. White glossy polycarbonate, IK08 impact resistance, IP2X safety. Four buttons control separate loads; non-illuminated.
EAN
3250617001977
Packaging
5
Allure 4-Gang Switch 16A 2-way White Glossy Flush Loop Terminal WBHSV4
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 1 products available
Technical properties
Electric current
-
Rated current16 A
Installation, mounting
-
Mounting onFlush mounting
Frequency
-
Frequency50 - 50 Hz
Materials
-
ColourWhite
-
Surface finishGlossy
-
MaterialPolycarbonate (PC)
-
TreatmentUntreated
Identification
-
Assembly arrangementBasic element with full cover plate
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons4
Dimensions
-
Built-in depth15 mm
-
Built-in depth flush-mounted boxes15 mm
Safety
-
Impact resistance IKIK08
Texts
-
Installation modeFor screw fastening
-
Type of connectionWith screw terminals
-
LightingWithout lighting (cannot be illuminated)
-
Push buttonNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

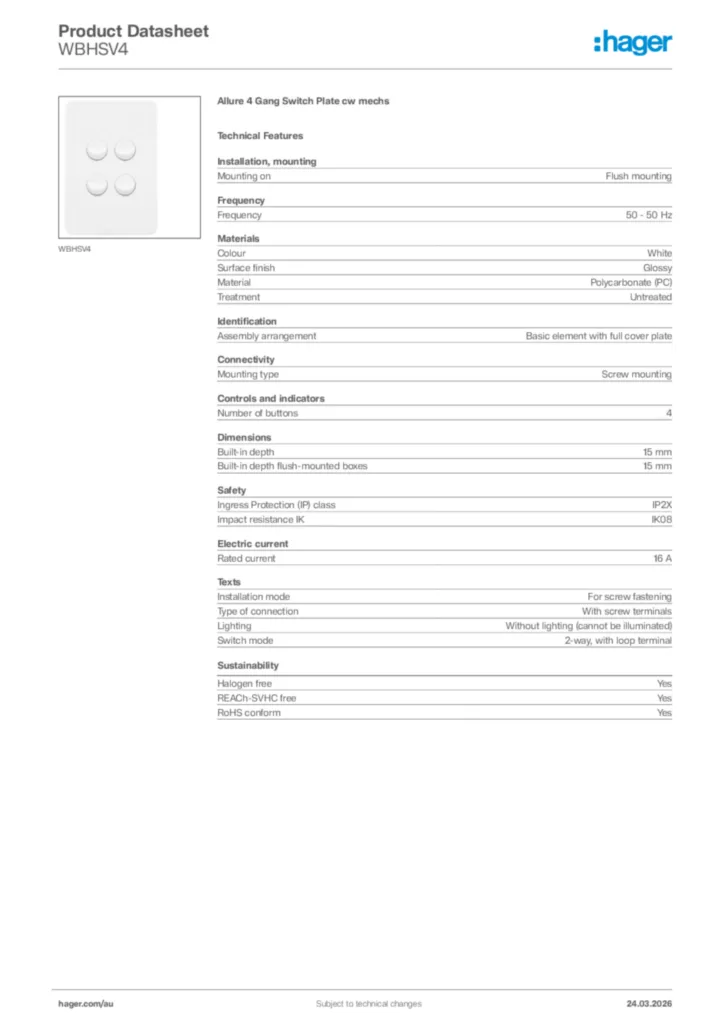

Product datasheet
Hager Product data sheet WBHSV4
Allure 4 Gang Switch Plate cw mechs
PDF
