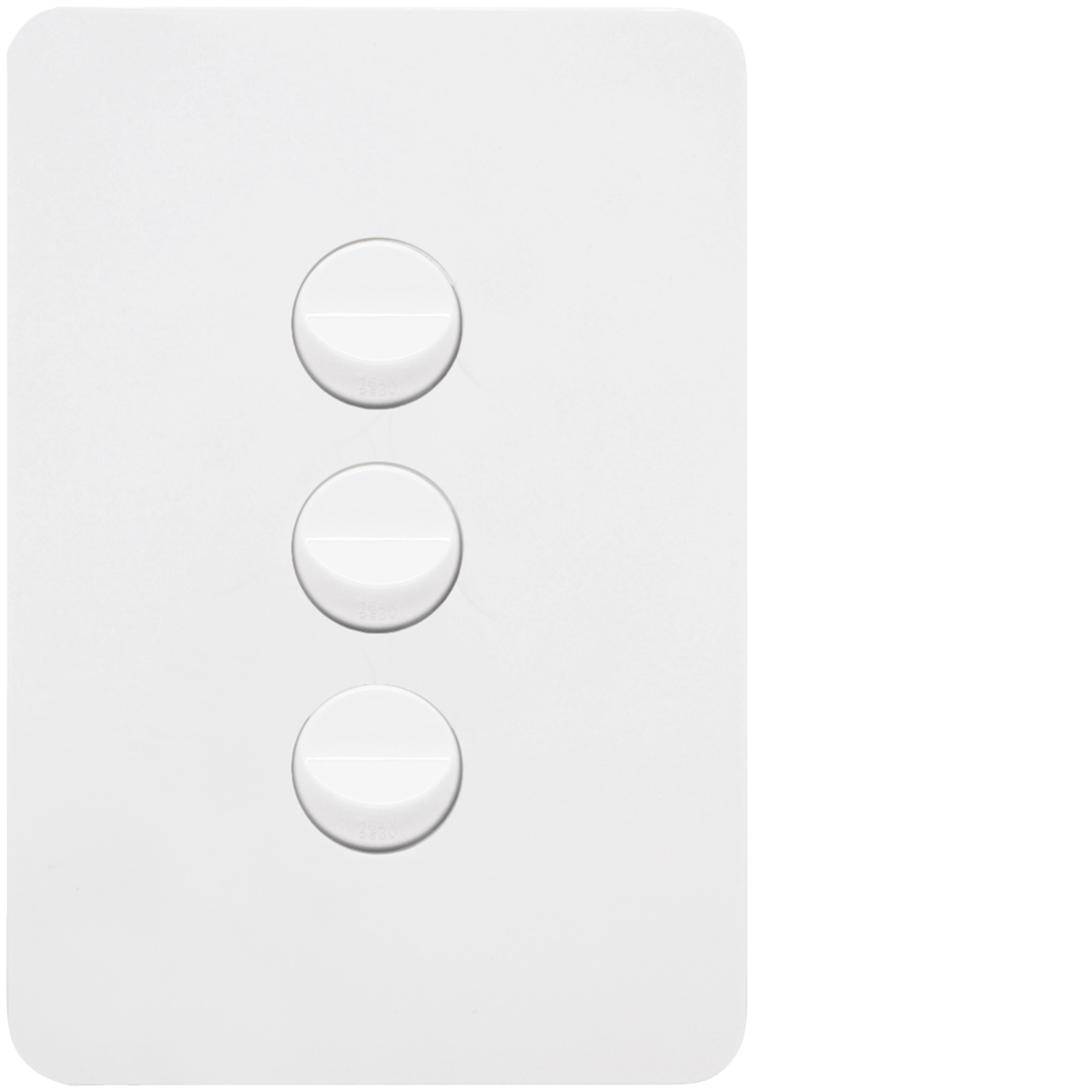

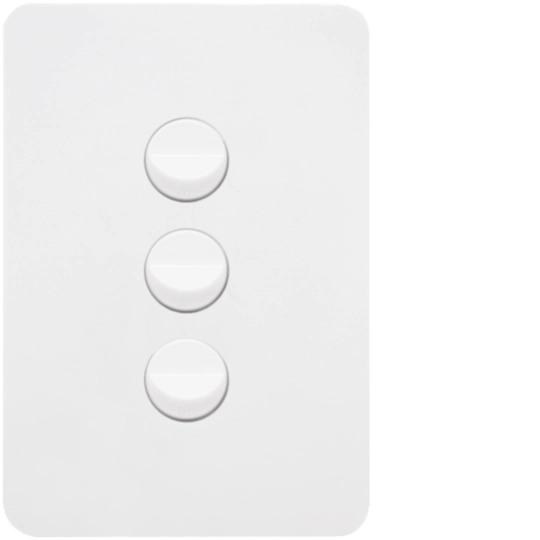

Hager The Hager Allure 3 Gang Switch Plate with mechanisms delivers reliable 2-way switching for lighting circuits. Rated 16A, 50 Hz, it suits residential and light commercial use. Flush-mounted with 15 mm depth, its white glossy polycarbonate plate is durable (IK08) and safe (IP2X). Screw mounting and screw terminals ease installation, while the loop terminal simplifies onward wiring. Non-illuminated full cover plate.
EAN
3250617001960
Packaging
5
Allure 3-Gang 2-Way Switch 16A White Flush Mount Loop Terminal WBHSV3
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 1 products available
Technical properties
Electric current
-
Rated current16 A
Installation, mounting
-
Mounting onFlush mounting
Frequency
-
Frequency50 - 50 Hz
Materials
-
ColourWhite
-
Surface finishGlossy
-
MaterialPolycarbonate (PC)
-
TreatmentUntreated
Identification
-
Assembly arrangementBasic element with full cover plate
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons3
Dimensions
-
Built-in depth15 mm
-
Built-in depth flush-mounted boxes15 mm
Safety
-
Impact resistance IKIK08
Texts
-
Installation modeFor screw fastening
-
Type of connectionWith screw terminals
-
LightingWithout lighting (cannot be illuminated)
-
Push buttonNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

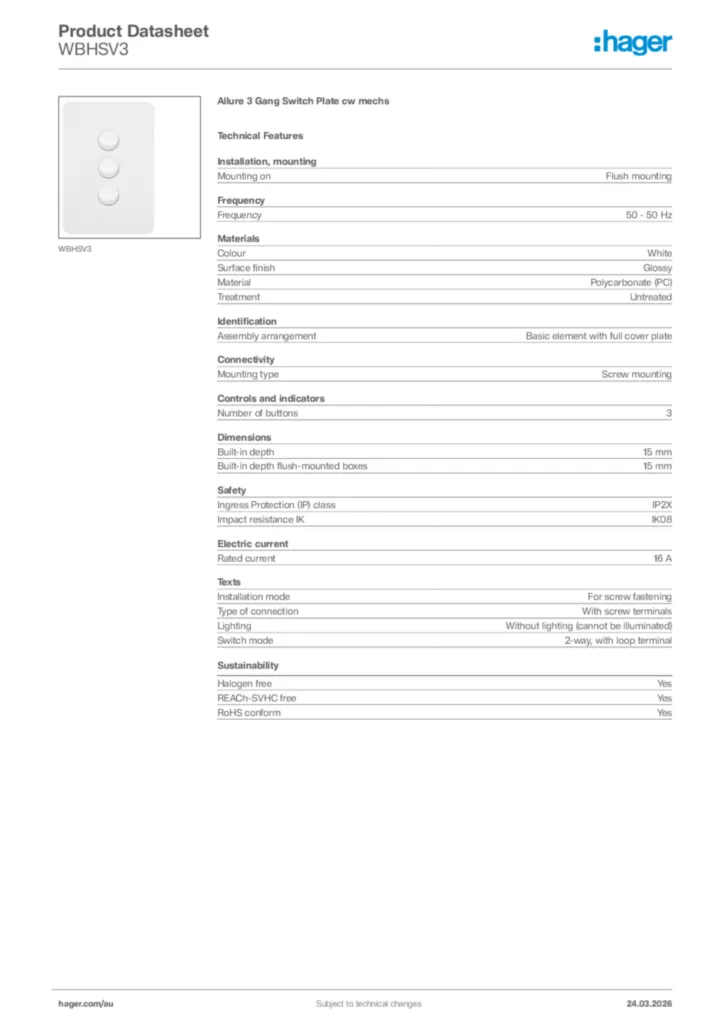

Product datasheet
Hager Product data sheet WBHSV3
Allure 3 Gang Switch Plate cw mechs
PDF
