Line coupler, KNX TYF130
EAN
3250617577359
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists

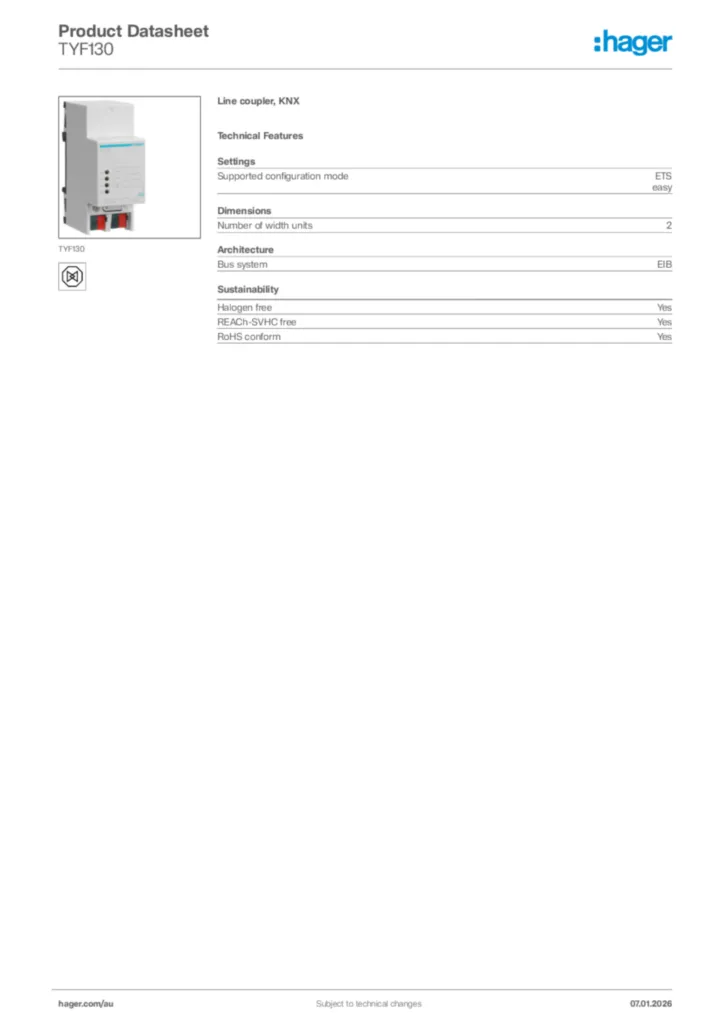

Technical properties
Architecture
-
Bus systemEIB
Functions
-
Easy link functionscan be used as line amplifier
Configuration
-
Number of modules2
Controls and indicators
-
Button / push-buttonwith programming button and red programming LED
Voltage
-
Operating voltage over bus21…32 V DC
-
System supply voltage30V DC via bus
Dimensions
-
Width of rail mounted device (RMD)2 modules
Power
-
Total power loss under IN0.5 W
LED control
-
LEDwith 2 yellow data traffic LEDs for higher and lower ranking line ; With green operation LED, red programming LED and red diagnosis LED
Connection
-
Type of connection to the busTG008 connector
-
Bus coupling unitwith integral bus coupling unit
-
Type of connectionline connection via connecting terminal
-
Bus connectionbus connection via connecting terminal
Settings
-
Supported configuration modessystem, easy
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Operating temperature-5…45 °C
Identification
-
Main design lineKNX
Downloads
-
Product image
-
Instruction manual
Operating manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-01-26
PDF827 KB -
KNX product database
Logiciel d'application ETS du TYF130
VD318 KB
Logiciel d'application ETS du TYF130
KNXPROD32 KB -
Application Guide
Description d'application ETS TYF130
PDF391 KB -
PEP document
Product environmental profile for TYF130
PDF436 KB
Product environmental profile for TYF130
PDF324 KB -
RoHS report
REACH-declaration 2023-10-20 (english)
PDF32 KB
RoHS-declaration 2023-10-20 (english)
PDF32 KB
