    Output module 2x 6A /230V~, 2 inputs, flush mounted, KNX TYBS692F

    Available soon

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Output module 2x 6A /230V~, 2 inputs, flush mounted, KNX

    TYBS692F

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Surge protec­tion device for data network­s/MCR tech­no­logy 1 products available
    • Accessor­ies/s­pare parts for bus system 2 products available
    • System inter­face/­media gateway for bus system 1 products available

    Complete your system

    • Surge protec­tion device for data network­s/MCR tech­no­logy
    • Accessor­ies/s­pare parts for bus system
    • System inter­face/­media gateway for bus system
    • TG029

      Surge protection device, KNX
      EUR 0.00  / *
    • TG019

      Bus cable length 500m green, KNX
      EUR 0.00  / *
    • TG018

      Bus cable length 100m green, KNX
      EUR 0.00  / *
    • TJAS471

      domovea plus
      EUR 0.00  / *

    Technical properties

    Connectivity
    • With bus system KNX
      Yes
    • With bus system KNX radio
      No
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Dimen­sions
    • Height
      44 mm
    • Width
      43 mm
    • Depth
      22 mm
    • Built-in depth
      40 mm
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Archi­tec­ture
    • Bus system
      KNX Secure
    Mater­ials
    • Colour
      Light grey
    Equip­ment
    • Radio frequency bidirec­tional
      No
    • With switch for manual switch
      Yes
    Elec­tric current
    • Max. switching current
      6 A
    • Rated current IN
      6 A
    • Bus current consump­tion while idle
      5 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      500 W
    • 230 V incan­des­cent and halogen lamp
      500 W
    • Power incan­des­cent lamp
      500 - 500 W
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Oper­ating voltage over bus
      21 - 32 V
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      0.75 - 2.5 mm²
    • Cross-sec­tion flex­ible conductor
      0.75 - 2.5 mm²
    Texts
    • Func­tion
      With safety func­tions e.g. for wind, rain, alarm, Binary input func­tions: Switch­ing, dimming, blind, value trans­mit­ter, scene, prior­ity, timer oper­a­tion, subplate, With posi­tioning func­tion for blind and lamella posi­tion, With sun shade func­tion
    • Type of connec­tion
      With screw terminals
    Data act compli­ance
    • Is gener­ating data
      Yes
    • Data types
      Basic inform­a­tion, Binary input, General diagnostics, On/Off status, Scenes, Soft­ware diagnostics, Window covering
    • Data formats
      KNX (TP)
    • Estim­ated daily data volume
      10 KB - 100 KB
    • Real time data gener­a­tion
      Yes
    • Data stored on device
      No

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration TYBS692F
    PDF
    RoHS report TYBS692F
    PDF
    PEP document en-GB 2024-04-03
    PDF
    421,53 kB

    Downloads

    • Product image

      Image TYBS692F | Hager Australia

      Product Image TYBS692F

    • Product datasheet

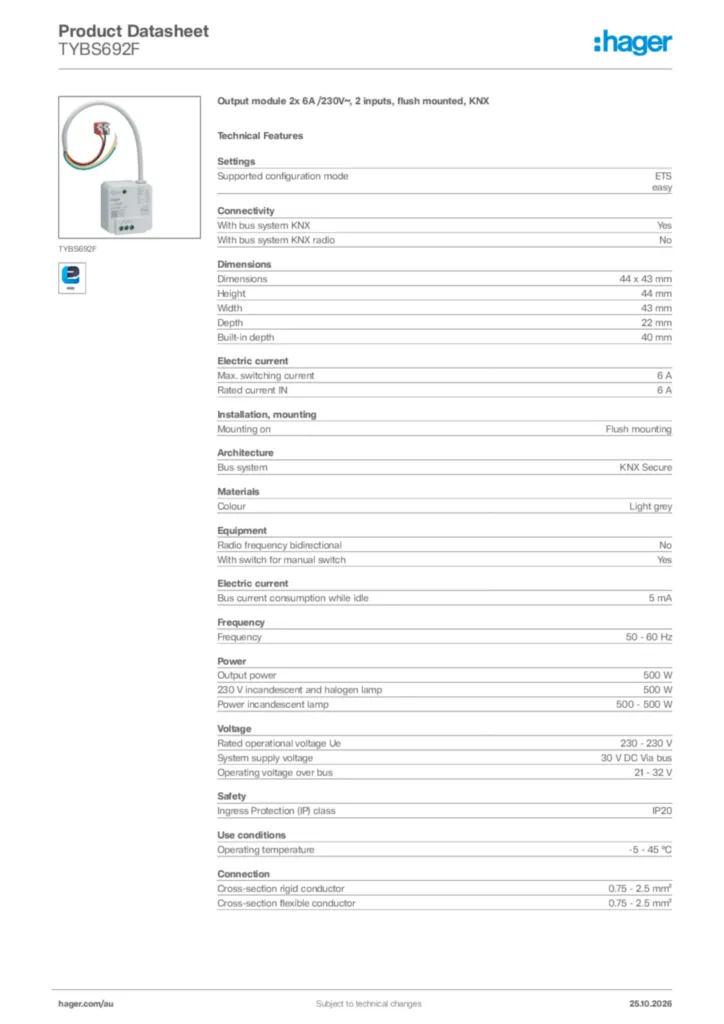

      Image Hager Product data sheet TYBS692F | Hager Australia

      Hager Product data sheet TYBS692F

      Output module 2x 6A /230V~, 2 inputs, flush mounted, KNX

      PDF

    • Instruction manual

      Image Instruction manual de-AT, de-DE, de-CH 2025-04-01 | Hager Australia

      Instruction manual de-AT, de-DE, de-CH 2025-04-01

      PDF
      807,74 kB
      Image Instruction manual en-AU, en-NZ, en-GB, en-US 2025-04-28 | Hager Australia

      Instruction manual en-AU, en-NZ, en-GB, en-US 2025-04-28

      PDF
      806,64 kB
      Image Instruction manual es-ES 2025-05-12 | Hager Australia

      Instruction manual es-ES 2025-05-12

      PDF
      808,68 kB
      Image Instruction manual fr-FR 2025-05-12 | Hager Australia

      Instruction manual fr-FR 2025-05-12

      PDF
      808,77 kB
      Image Instruction manual it-IT 2025-05-12 | Hager Australia

      Instruction manual it-IT 2025-05-12

      PDF
      805,82 kB
      Image Instruction manual nl-NL 2025-05-12 | Hager Australia

      Instruction manual nl-NL 2025-05-12

      PDF
      805,60 kB

    • Installation manual

      Image Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, zh-CN 2024-01-15 | Hager Australia

      Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, zh-CN 2024-01-15

      PDF
      4,89 MB

    • Manual

      Image Manual en-GB 2015-09-24 | Hager Australia

      Manual en-GB 2015-09-24

      PDF
      2,84 MB

    • KNX product database

      Image KNX product database International 2024-05-07 | Hager Australia

      KNX product database International 2024-05-07

      KNXPROD
      362,40 kB

    • Application Guide

      Image Application Guide en-GB 2024-06-27 | Hager Australia

      Application Guide en-GB 2024-06-27

      PDF
      1,74 MB

    • SupportDataActNotice

      Image Data Act Notice | Hager Australia

      Data Act Notice

      Data Act Notice for Hager connected products and services - Status 28.11.2025 (English)

      URL

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Declaration of conformity en-GB, fr-FR 2024-04-04

      PDF
      363,61 kB
      Image UKCA Declaration of Conformity | Hager Australia

      UKCA Declaration of Conformity

      Declaration of conformity en-GB 2024-04-04

      PDF
      270,10 kB
