    • Home
    • Catalog
    • TYAS664AN
    EAN
    3250610050255
    Packaging
    1 Piece
    Data Act Notice

    Dimmer 4 channels 300w with parallelization KNX Secure TYAS664AN

    Available soon

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Dimmer 4 channels 300w with parallelization KNX Secure

    TYAS664AN

    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Technical properties

    Voltage
    • Oper­ating voltage over bus
      21 - 32 V
    • Input voltage
      230 - 230 V
    Elec­tric current
    • Rated current IN
      5200 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Connec­tion
    • Connect­or/plug type
      DRA (DIN-rail Adapter)
    Connectivity
    • With bus system KNX radio
      No
    • Type of connec­tion
      quick­con­nect
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Texts
    • Fuse
      Over­heating protec­tion (dis­play using LEDs), Short-­cir­cuit proof and over­load-­proof (dis­play using LEDs)
    • Dimming prin­ciple
      Phase cut-on or cut-off according to load type, self-learning, Minim­um/max­imum dimming values per channel settable on device
    • Func­tion
      Learning func­tion for optim­ised oper­a­tion of compact fluor­es­cent lamps and LED lumin­aires can be activ­ated via the bus
    • Type of connec­tion
      With quick­con­nect plug-in terminals
    • Labelling
      Large labelling field
    • Protec­tion
      With over­heat­ing, over­load and short-­cir­cuit protec­tion
    Dimen­sions
    • Number of width units
      8
    Data act compli­ance
    • Is gener­ating data
      Yes
    • Data types
      Basic inform­a­tion, Dimming level control, On/Off status, Scenes
    • Data formats
      KNX (TP)
    • Estim­ated daily data volume
      10 KB - 100 KB
    • Real time data gener­a­tion
      Yes
    • Data stored on device
      No
    Mater­ials
    • RAL code
      7035

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    Certifications and documents

    PEP - Heating actuator 6 channels KNX, with regulation, 24/230V (English)
    PDF
    266,23 kB
    REACH declaration TYAS664AN
    PDF
    RoHS report TYAS664AN
    PDF

    Downloads

    • Product image

      Image TYAS664AN | Hager Australia

      Product Image TYAS664AN

    • Product datasheet

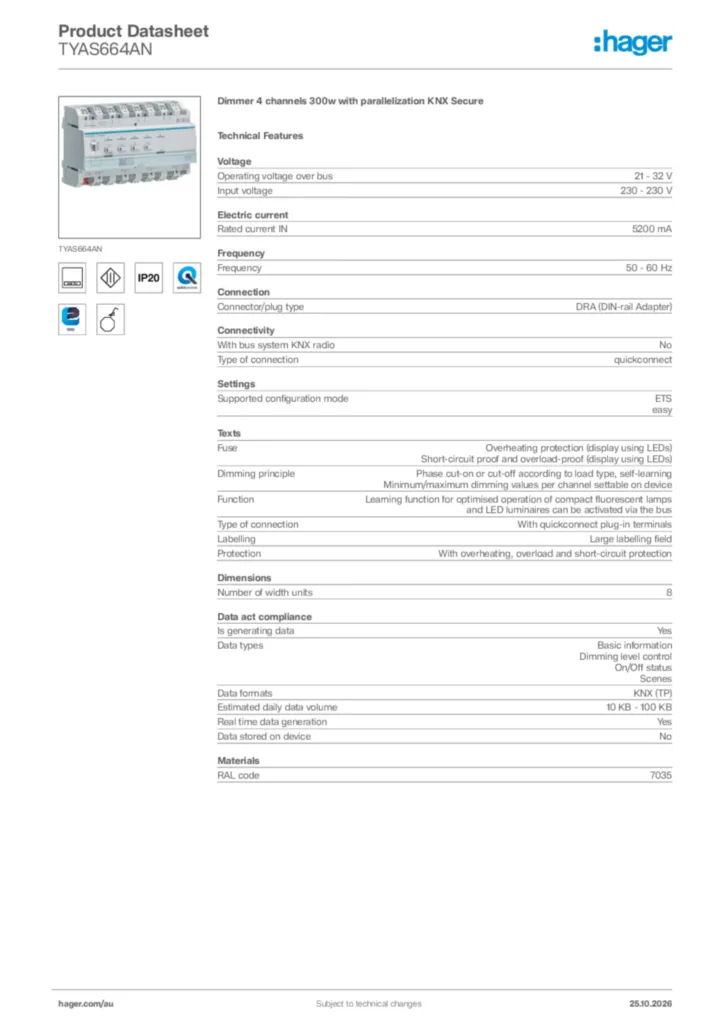

      Image Hager Product data sheet TYAS664AN | Hager Australia

      Hager Product data sheet TYAS664AN

      Dimmer 4 channels 300w with parallelization KNX Secure

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2024-10-31 | Hager Australia

      Instruction manual en-GB 2024-10-31

      PDF
      2,13 MB

    • Installation manual

      Image Installation manual zh-CN, en-GB, fr-FR, de-DE, it-IT, nl-NL, pt-PT 2023-07-11 | Hager Australia

      Installation manual zh-CN, en-GB, fr-FR, de-DE, it-IT, nl-NL, pt-PT 2023-07-11

      PDF
      2,78 MB

    • KNX product database

      Image ETS Database for TYAS664AN | Hager Australia

      ETS Database for TYAS664AN

      KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2023-10-13

      KNXPROD
      516,50 kB

    • Application Guide

      Image Application guide ETS | Hager Australia

      Application guide ETS

      Application guide ETS TYAS664AN - EN

      PDF
      3,01 MB
      Image Application guide Easytool | Hager Australia

      Application guide Easytool

      Application guide Easytool TYAS664AN - EN

      PDF
      1,11 MB

    • Declaration of conformity

      Image Declaration of conformity International 2023-09-05 | Hager Australia

      Declaration of conformity International 2023-09-05

      PDF
      315,83 kB
      Image Declaration of conformity International 2023-09-05 | Hager Australia

      Declaration of conformity International 2023-09-05

      PDF
      270,28 kB
