    EAN
    3250610022023
    Packaging
    1 Piece
    Data Act Notice

    Output module 10-fold 16a c-load adapted TYAS610D

    Available soon

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Output module 10-fold 16a c-load adapted

    TYAS610D

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Complete your system

    Optional accessories

    • Surge protec­tion device for data network­s/MCR tech­no­logy 1 products available
    • Accessor­ies/s­pare parts for bus system 2 products available

    Complete your system

    • Surge protec­tion device for data network­s/MCR tech­no­logy
    • Accessor­ies/s­pare parts for bus system
    • TG029

      Surge protection device, KNX
      EUR 0.00  / *
    • TG019

      Bus cable length 500m green, KNX
      EUR 0.00  / *
    • TG018

      Bus cable length 100m green, KNX
      EUR 0.00  / *

    Technical properties

    Connectivity
    • With bus system KNX
      Yes
    • With bus system KNX radio
      No
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy
    Dimen­sions
    • Height
      90 mm
    • Depth
      62,5 mm
    • Number of width units
      6
    Install­a­tion, mounting
    • Mounting on
      DIN rail
    Archi­tec­ture
    • Bus system
      KNX
    Mater­ials
    • Colour
      Light grey
    Equip­ment
    • Radio frequency bidirec­tional
      No
    • With switch for manual switch
      Yes
    Elec­tric current
    • Max. switching current
      16 A
    • Rated current IN
      16 A
    • Bus current consump­tion while idle
      8 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Power incan­des­cent lamp 230 V
      2300 - 2300 W
    • Output power
      2300 W
    • 230 V incan­des­cent and halogen lamp
      2300 W
    • Power incan­des­cent lamp
      2300 - 2300 W
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Oper­ating voltage over bus
      21 - 32 V
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      0.75 - 2.5 mm²
    • Cross-sec­tion flex­ible conductor
      0.75 - 2.5 mm²
    Data act compli­ance
    • Is gener­ating data
      Yes
    • Data types
      Basic inform­a­tion, General diagnostics, On/Off status, Scenes, Soft­ware diagnostics
    • Data formats
      KNX (TP)
    • Estim­ated daily data volume
      10 KB - 100 KB
    • Real time data gener­a­tion
      Yes
    • Data stored on device
      No

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Heating actuator 6 channels KNX, with regulation, 24/230V (English)
    PDF
    266,23 kB
    REACH declaration TYAS610D
    PDF
    RoHS report TYAS610D
    PDF

    Downloads

    • Product image

      Image TYAS610D | Hager Australia

      Product Image TYAS610D

    • Product datasheet

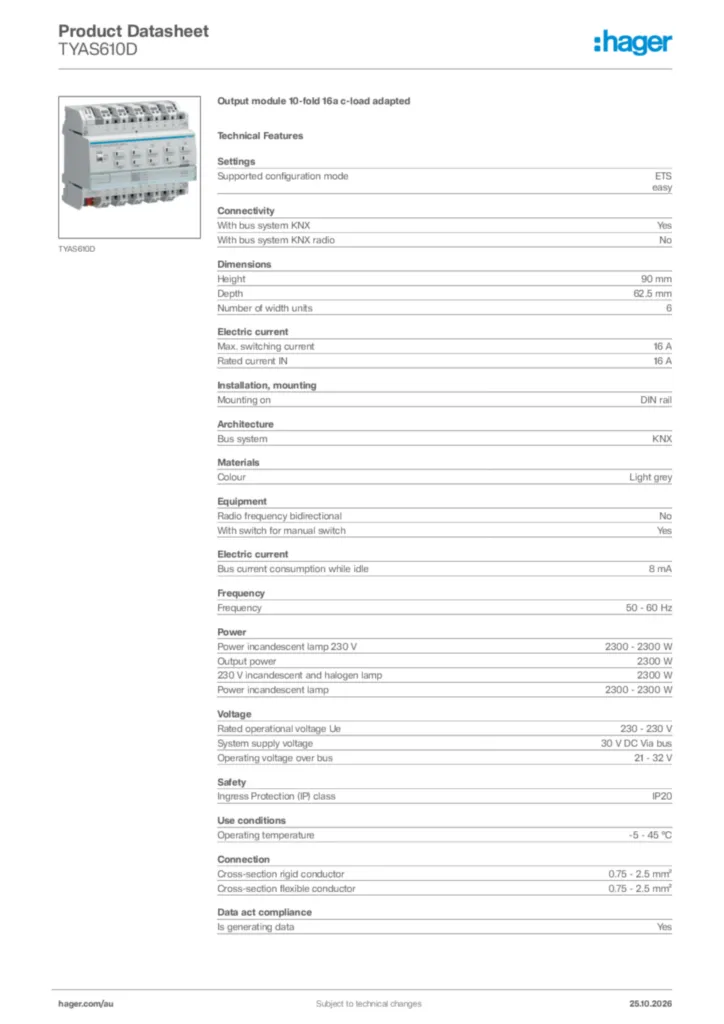

      Image Hager Product data sheet TYAS610D | Hager Australia

      Hager Product data sheet TYAS610D

      Output module 10-fold 16a c-load adapted

      PDF

    • Installation manual

      Image Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, zh-CN, ar 2026-05-11 | Hager Australia

      Installation manual en-GB, de-DE, fr-FR, it-IT, nl-NL, es-ES, pt-PT, zh-CN, ar 2026-05-11

      PDF
      5,05 MB

    • Manual

      Image Manual en-AU, en-NZ, en-GB, en-US 2025-02-21 | Hager Australia

      Manual en-AU, en-NZ, en-GB, en-US 2025-02-21

      PDF
      1,54 MB

    • KNX product database

      Image KNX Product database TYAS610D | Hager Australia

      KNX Product database TYAS610D

      KNX product database International 2025-11-13

      KNXPROD
      927,03 kB

    • Application Guide

      Image Application Guide en-GB 2026-08-24 | Hager Australia

      Application Guide en-GB 2026-08-24

      PDF
      3,93 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Declaration of conformity en-GB 2025-05-20

      PDF
      265,92 kB
      Image UKCA Declaration of conformity | Hager Australia

      UKCA Declaration of conformity

      Declaration of conformity en-GB 2025-05-20

      PDF
      264,12 kB
