    • Home
    • Catalog
    • TYA663AN
    EAN
    3250616059351
    Packaging
    1 Piece

    Dimmer 3 channels 300W TYA663AN

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Phase out product: please contact your electrical wholesaler for availability

    Dimmer 3 channels 300W

    TYA663AN

    • Technical properties
    • Environmental value
    • Documentations
    Download the data sheet

    Technical properties

    Voltage
    • Oper­ating voltage over bus
      21 - 32 V
    • Input voltage
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Auxil­iary tension
      230 - 230 V
    Elec­tric current
    • Bus current consump­tion data transfer
      2,30 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 45 °C
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      0.75 - 2.5 mm²
    • Cross-sec­tion rigid conductor
      0.75 - 2.5 mm²
    Equip­ment
    • Number of outputs
      3
    • Type of dimmer
      Universal
    Lighting
    • LED lamp power
      210 W
    • Dimmable 230 V LED lamp
      60 - 60 W
    Capa­city
    • Number of modules
      6
    Power
    • 230 V incan­des­cent and halogen lamp
      300 W
    • Power incan­des­cent lamp
      900 - 900 W
    • Power of vari­ator
      900 - 900 W
    Connectivity
    • With bus system KNX radio
      No
    • Type of connec­tion
      quick­con­nect
    Settings
    • Supported config­ur­a­tion mode
      ETS
    Texts
    • Fuse
      Over­heating protec­tion (dis­play using LEDs), Short-­cir­cuit proof and over­load-­proof (dis­play using LEDs)
    • Oper­ating mode
      1. 2 or 3-channel oper­a­tion possible, Load coup­ling of 3 chan­nels to increase output power using parallel connec­tion of the outputs
    • Dimming prin­ciple
      Phase cut-on or cut-off according to load type, self-learning, Minim­um/max­imum dimming values per channel settable on device
    • Func­tion
      Learning func­tion for optim­ised oper­a­tion of compact fluor­es­cent lamps and LED lumin­aires can be activ­ated via the bus
    • Type of connec­tion
      With quick­con­nect plug-in terminals
    • Labelling
      Large labelling field
    • Protec­tion
      With over­heat­ing, over­load and short-­cir­cuit protec­tion

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    Heating actuator 6 channels KNX, with regulation, 24/230V
    PDF
    266,23 kB
    Hager REACH declaration TYA663AN
    PDF
    RoHS report TYA663AN
    PDF

    Downloads

    • Product image

      Image TYA663AN | Hager Australia

      Product Image TYA663AN

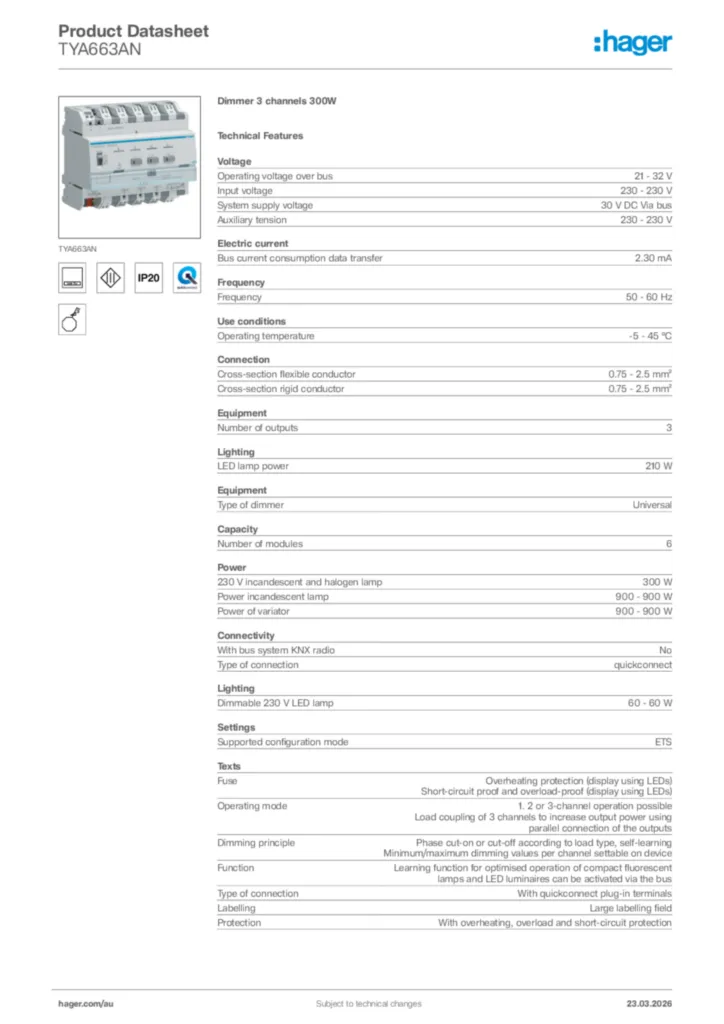

    • Product datasheet

      Image Hager Product data sheet TYA663AN | Hager Australia

      Hager Product data sheet TYA663AN

      Dimmer 3 channels 300W

      PDF

    • Installation manual

      Image Installation manual en-GB, pl-PL 2017-02-22 | Hager Australia

      Installation manual en-GB, pl-PL 2017-02-22

      PDF
      681,23 kB

    • KNX product database

      Image ETS Database for TYA663AN | Hager Australia

      ETS Database for TYA663AN

      KNX product database International 2020-01-01

      KNXPROD
      415,71 kB
      Image ETS Database for TYA663AN | Hager Australia

      ETS Database for TYA663AN

      KNX product database International 2020-01-01

      VD5
      648,54 kB

    • Application Guide

      Image Application description ETS TYA661AN/BN TYA663AN | Hager Australia

      Application description ETS TYA661AN/BN TYA663AN

      Application Guide en-GB, pl-PL 2013-10-28

      PDF
      4,07 MB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2021-12-10

      PDF
      138,10 kB
