Hager The Hager KNX output device for 8 shutters or blinds (230 V~) delivers centralized, programmable control of up/down/stop for up to eight motors. Integrated with KNX, it enables individual or group commands and scenes to boost comfort and efficiency. Ideal for residential or commercial automation, it installs neatly in the panel for reliable operation and streamlined management.

EAN

3250616059573

Packaging

1 Piece

KNX 8-channel shutter/blind actuator 230V~ TYA628C

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

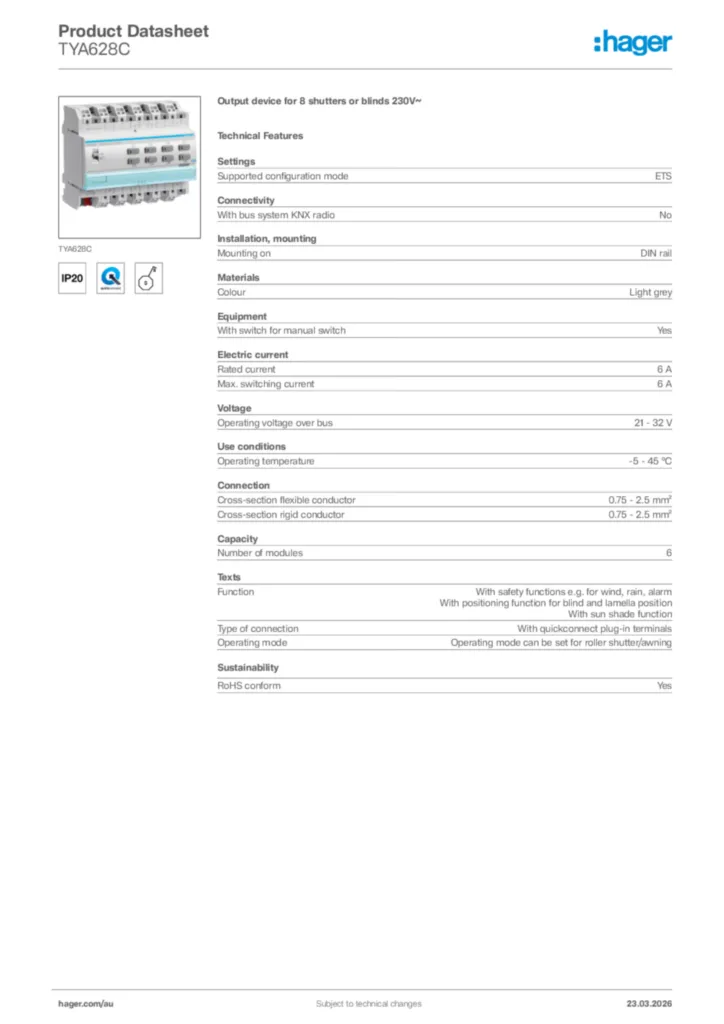

Download the data sheet

Technical properties

Supported configuration mode

ETS

With bus system KNX radio

No

Mounting on

DIN rail

With switch for manual switch

Yes

Colour

Light grey

Rated current

6 A
Max. switching current

6 A

Operating voltage over bus

21 - 32 V

Operating temperature

-5 - 45 °C

Cross-section flexible conductor

0.75 - 2.5 mm²
Cross-section rigid conductor

0.75 - 2.5 mm²

Number of modules

6

Function

With safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
Type of connection

With quickconnect plug-in terminals
Operating mode

Operating mode can be set for roller shutter/awning
