Shutter module 8x 6A /230V~, KNX TYA628A
EAN
3250616059580
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. However, this page remains available for information purposes. Please contact our Customer Service team on 1300 850 253 for more information.
Technical properties
Settings
-
Supported configuration modeETS
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onDIN rail
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current6 A
-
Max. switching current6 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Capacity
-
Number of modules6
Texts
-
FunctionWith positioning function for roller shutter position, With safety functions e.g. for wind, rain, alarm, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
-
Operating modeOperating mode only roller shutters
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

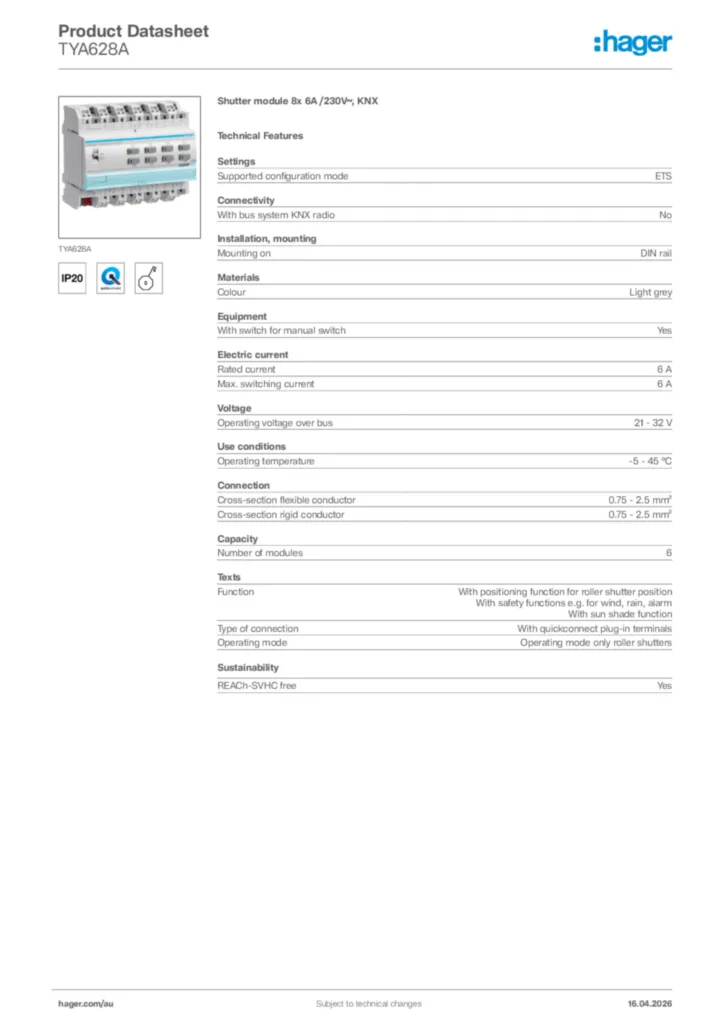

Product datasheet
Hager Product data sheet TYA628A
Shutter module 8x 6A /230V~, KNX
PDF -
KNX product database
Logiciel d'application ETS du TYA628A
KNX product database International 2020-01-01
VD51,66 MB
Logiciel d'application ETS du TYA628A
KNX product database International 2020-01-01
KNXPROD781,52 kB -
Application Guide
Application description ETS TYA624ABCD_TYA628AC_TYB621C_TYM632C
Application Guide en-GB, pl-PL, sv-SE 2014-01-08
PDF6,81 MB
Application description ETS TYA624ABCD_TYA628AC_TYB621C_TYM632C
Application Guide en-GB, pl-PL 2013-11-22
PDF6,23 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-12-02
PDF127,35 kB
More documentation
