Output device for 4 shutters / blinds 24V DC TYA624D
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical properties
Settings
-
Supported configuration modeETS
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onDIN rail
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current6 A
-
Max. switching current6 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Capacity
-
Number of modules4
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
-
Operating modeOperating mode can be set for roller shutter/awning
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

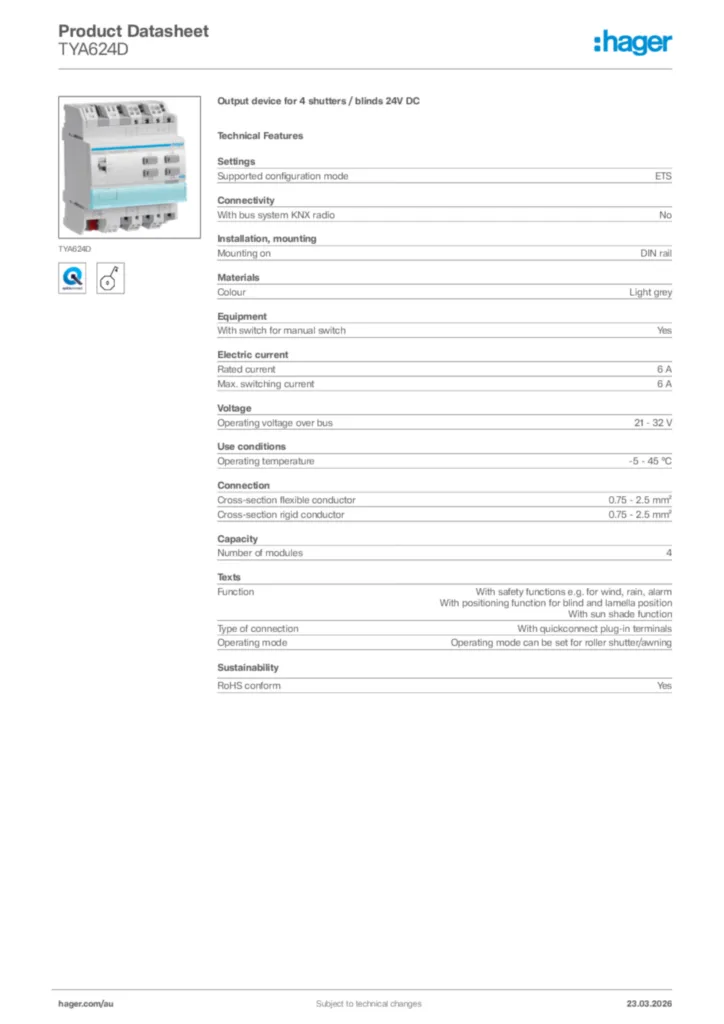

Hager Product data sheet TYA624D
Output device for 4 shutters / blinds 24V DC
PDF -
Installation manual
Installation manual en-GB, pl-PL 2017-03-03
PDF402,79 kB -
KNX product database
Logiciel d'application ETS du TYA624C_D
KNX product database International 2020-01-01
VD51004,61 kB
Logiciel d'application ETS du TYA624C_D
KNX product database International 2020-01-01
KNXPROD467,02 kB -
Application Guide
Application description ETS TYA624ABCD_TYA628AC_TYB621C_TYM632C
Application Guide en-GB, pl-PL, sv-SE 2014-01-08
PDF6,81 MB
Application description ETS TYA624ABCD_TYA628AC_TYB621C_TYM632C
Application Guide en-GB, pl-PL 2013-11-22
PDF6,23 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity en-US, fr-FR 2024-11-20
PDF126,83 kB
