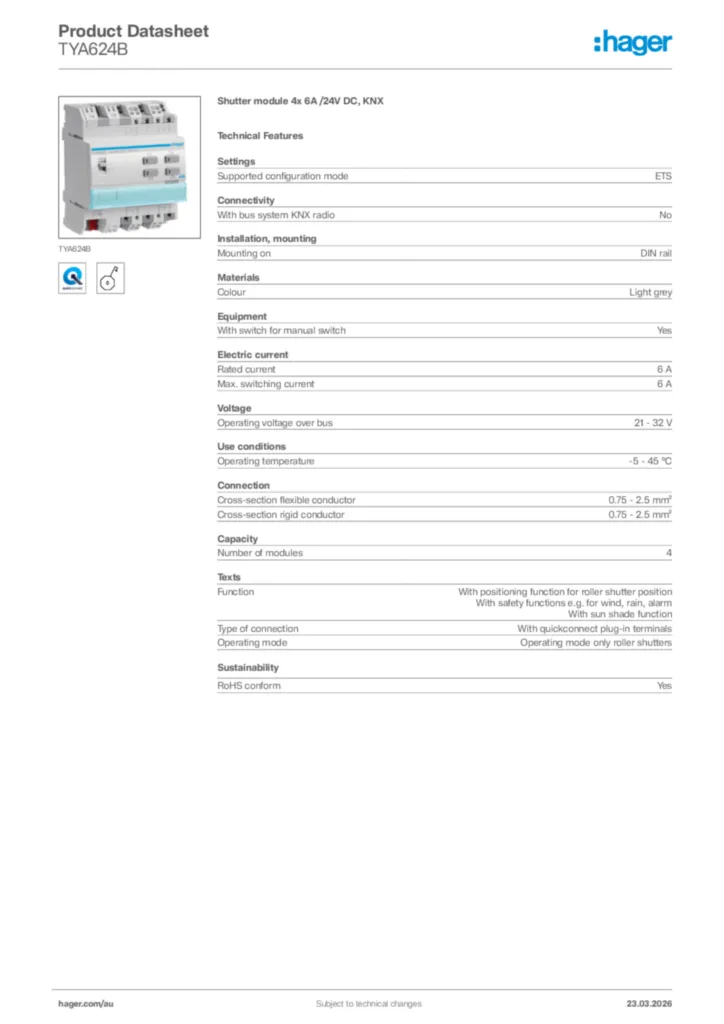

Shutter module 4x 6A /24V DC, KNX TYA624B
EAN
3250616059658
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemKNX
-
Number of blinds/shutters outputs4
Functions
-
Bus module detachableNo
-
Functionwith safety functions e.g. for wind, rain, alarm ; with sun shade function ; with positioning function for roller shutter position
-
Operating modeoperating mode only roller shutters
Configuration
-
Number of modules4
Controls and indicators
-
Indicator lampyes
-
Operationmanual operation per channel using button (single-area operation) ; Manual operation can be activated via selection switch, thereby deactivation of the KNX function
-
Controlfor activation of max. 4 independent DC drives
-
Indication / displaystatus LED integrated in the manual operation button
-
Manual selection switches / push-buttons4 manual operation buttons for up/down per channel/device
-
Button / push-buttonwith illuminated programming button
Main electrical features
-
Type of supply voltageDC
-
Rated current6 A
Voltage
-
Operating voltage over bus21…32 V DC
-
System supply voltage30V DC via bus
Electric current
-
Bus current consumption (data transfer)5.2 mA
-
Bus current consumption (idle)4 mA
-
Number of entry circuits0
-
Maximum switching current6 A
-
Switching current at 24 V=max. 6 A
Dimensions
-
Width of rail mounted device (RMD)4 modules
-
Height90 mm
Power
-
Contact rating with 230 V in AC1144 W
-
Total power loss under IN2 W
LED control
-
LEDStatus LED integrated in manual operation button
Connection
-
Connection cross-sect. flexible conductor0,75 / 2,5mm²
-
Connection cross-sect. rigid cable0,75 / 2.5mm²
-
Conductor cross-section (flexible)0.75…2.5 mm²
-
Conductor cross-section (rigid)0.75…2.5 mm²
-
Number of contacts4
-
Bus coupling unitwith integral bus coupling unit
-
Type of connectionwith QuickConnect plug-in terminals
-
Bus connectionbus connection via connecting terminal
-
Type of connectionquick connect
Settings
-
Supported configuration modessystem
-
Settingswitching time on change of direction adjustable
Scope of delivery
-
Bus connection includedYes
Equipment
-
Modular expandabilityNo
Safety
-
REACH conformNo
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-5…45 °C
-
Storage/transport temperature-20…70 °C
Identification
-
Device familyTYA
-
Main design lineKNX
