Shutter module 4x 6A /230V~, KNX TYA624A

EAN

3250616059672

Packaging

1 Piece

Technical properties
Documentations

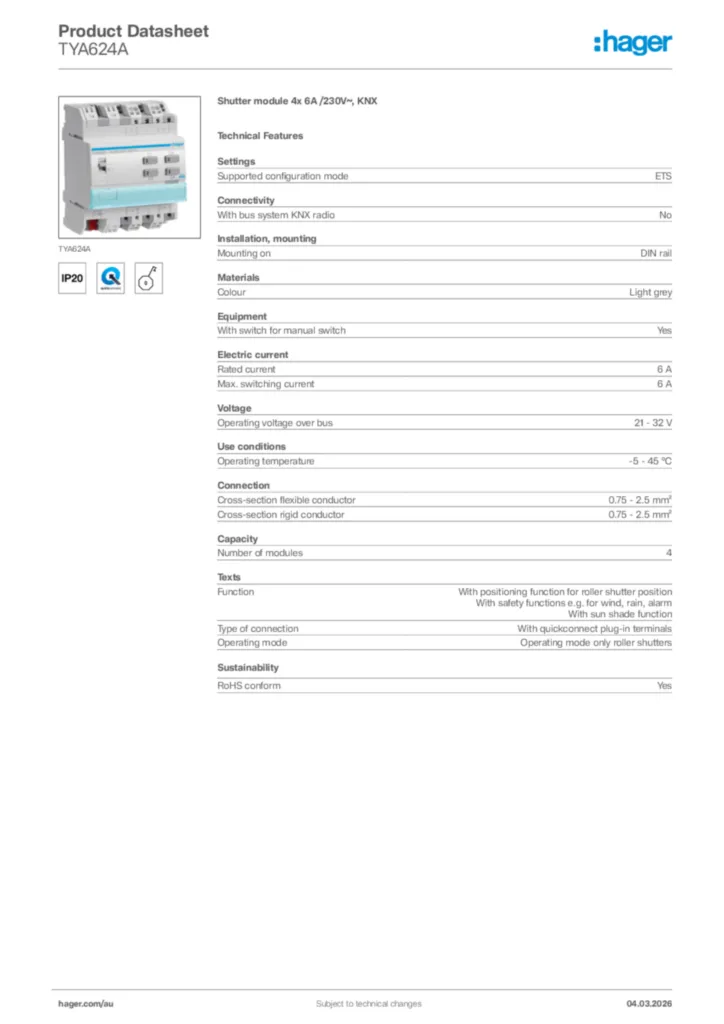

Download the data sheet

Technical properties

Bus system

KNX
Number of blinds/shutters outputs

4

Bus module detachable

No
Multi-phase mode

suitable to switch different external conductors
Function

with sun shade function ; with safety functions e.g. for wind, rain, alarm ; with positioning function for roller shutter position
Operating mode

operating mode only roller shutters

Number of modules

4

Indicator lamp

yes
Operation

manual operation per channel using button (single-area operation) ; Manual operation can be activated via selection switch, thereby deactivation of the KNX function
Control

for activation of an AC drive per actuator channel
Indication / display

status LED integrated in the manual operation button
Manual selection switches / push-buttons

4 manual operation buttons for up/down per channel/device
Button / push-button

with illuminated programming button

Type of supply voltage

AC
Frequency

50/60 Hz
Rated current

6 A

Operating voltage over bus

21…32 V DC
System supply voltage

30V DC via bus

Bus current consumption (data transfer)

5.2 mA
Bus current consumption (idle)

5 mA
Number of entry circuits

0
Maximum switching current

6 A
Switching current at cos φ = 0.6

max. 6 A

Depth

65 mm
Width of rail mounted device (RMD)

4 modules
Height

90 mm

Contact rating with 230 V in AC1

1380 W
Total power loss under IN

2 W

RAL colour

RAL 7035 - Light grey

LED

Status LED integrated in manual operation button

Connection cross-sect. flexible conductor

0,75 / 2,5mm²
Connection cross-sect. rigid cable

0,75 / 2.5mm²
Conductor cross-section (flexible)

0.75…2.5 mm²
Conductor cross-section (flexible), without wire end sleeve

0.75…2.5 mm²
Conductor cross-section (rigid)

0.75…2.5 mm²
Number of contacts

4
Bus coupling unit

with integral bus coupling unit
Type of connection

with QuickConnect plug-in terminals
Bus connection

bus connection via connecting terminal
Type of connection

quick connect

Supported configuration modes

system
Setting

switching time on change of direction adjustable

Bus connection included

Yes

Modular expandability

No

REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-5…45 °C
Storage/transport temperature

-20…70 °C

Device family

TYA
Main design line

KNX
