Output module 10x 4A /230V~, KNX TYA610A

EAN

3250616059788

Packaging

1 Piece

Technical properties
Documentations

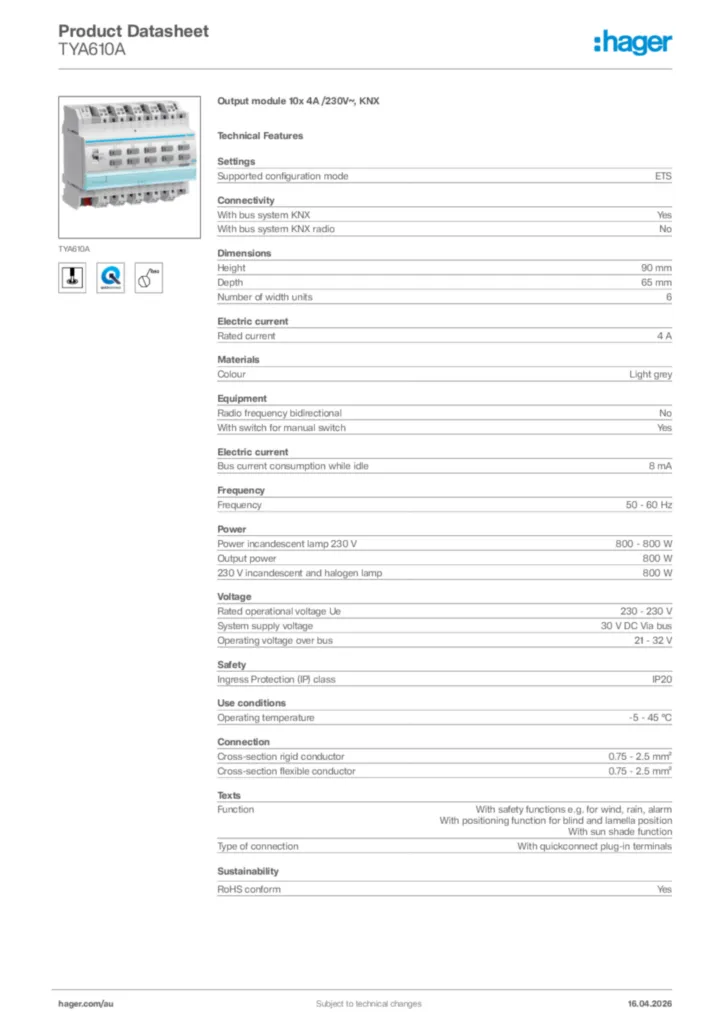

Download the data sheet

Technical properties

Bus system

KNX

Multi-phase mode

suitable to switch different external conductors
Function

with positioning function for blind and lamella position ; with safety functions e.g. for wind, rain, alarm ; with sun shade function
Switching

For switching, e.g. of 10 independent loads or activation of 5 drives
Operating mode

any combined operation from drive and switching functions possible

Number of modules

6

Indicator lamp

yes
Operation

Manual operation can be activated via selection switch, thereby deactivation of the KNX function ; manual operation per channel using button (single-area operation)
Indication / display

status LED integrated in the manual operation button
Manual selection switches / push-buttons

manual operation buttons for on/off (up/down) and bus function on/off per channel/device
Button / push-button

with illuminated programming button

Rated current

4 A

Operating voltage over bus

21…32 V DC
Output voltage

230 V
System supply voltage

30V DC via bus

Bus current consumption (data transfer)

16 mA
Bus current consumption (idle)

8 mA
Number of entry circuits

0
Maximum through current

4 A
Switching current at cos φ = 0.8

max. 4 A

Depth

65 mm
Width of rail mounted device (RMD)

6 modules
Height

90 mm

Max. power with electronic transfo.

800 W
Total power loss under IN

0.7 W
Power dissipation per coil

0.15 W
Output power

800 W
Conventional transformers

800 VA
Electronic transformers

800 VA

Fluorescent lamps with electronical ballast (EB)

12 x 36 W

Energy-saving lamps

6 x 23 W
Power lighting fluo lamps

6x23W
Max. power fluo. duo lamp comp. series

12 x 36 W

Max number of LED/CFL lamps

6
230V LED lamps

6 x 23 W
Power LED

72 W
LED

Status LED integrated in manual operation button

Max. power with incandescent lamps

800 W
230 V incandescent lamps

800 W
230 V halogen lamps

800 W
230 V incandescent lamps and halogen lamps

800 W

Connection cross-sect. flexible conductor

0,75 / 2,5mm²
Connection cross-sect. rigid cable

0,75 / 2.5mm²
Conductor cross-section (flexible)

0.75…2.5 mm²
Conductor cross-section (rigid)

0.75…2.5 mm²
Bus coupling unit

with integral bus coupling unit
Type of connection

with QuickConnect plug-in terminals
Bus connection

bus connection via connecting terminal
Type of connection

quick connect

Supported configuration modes

system
Setting

switching time on change of direction adjustable

Bus connection included

Yes

Modular expandability

No

Differentiation characteristic 3 - Sales

with plug-in terminals

REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-5…45 °C
Storage/transport temperature

-20…70 °C

Main design line
