EAN

3250616059726

Packaging

1 Piece

Output module 8x 16A /230V~, KNX TYA608C

No longer available

Technical properties
Environmental value
Documentations

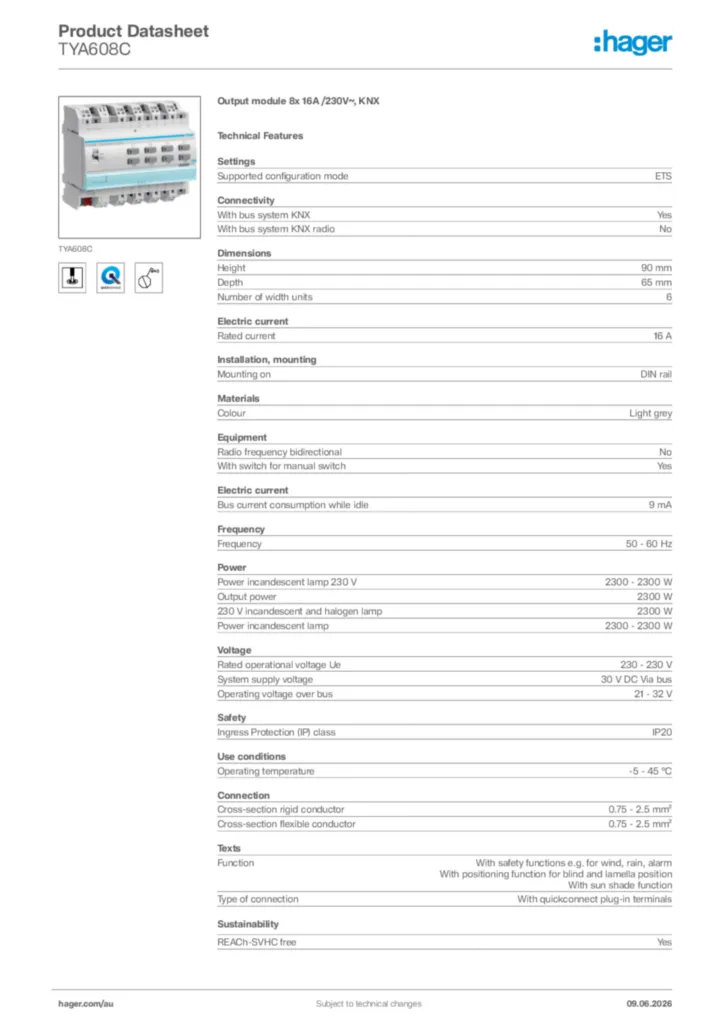

Download the data sheet

Technical properties

With bus system KNX

Yes
With bus system KNX radio

No

Supported configuration mode

ETS

Height

90 mm
Depth

65 mm
Number of width units

6

Colour

Light grey

Radio frequency bidirectional

No
With switch for manual switch

Yes

Rated current

16 A
Bus current consumption while idle

9 mA

Frequency

50 - 60 Hz

Power incandescent lamp 230 V

2300 - 2300 W
Output power

2300 W
230 V incandescent and halogen lamp

2300 W

Rated operational voltage Ue

230 - 230 V
System supply voltage

30 V DC Via bus
Operating voltage over bus

21 - 32 V

Ingress Protection (IP) class

IP20

Operating temperature

-5 - 45 °C

Cross-section rigid conductor

0.75 - 2.5 mm²
Cross-section flexible conductor

0.75 - 2.5 mm²

Function

With safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
Type of connection

With quickconnect plug-in terminals

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

REACh-SVHC free Yes

Certifications and documents

PEP document en-GB 2022-05-06

PDF

312,73 kB

REACH declaration TYA608C

PDF

Hager RoHS report TYA608C

PDF
