Hager The Hager KNX 6-fold 16A C-load switching actuator with current monitoring controls up to six circuits via KNX. C-load adaptation ensures reliable switching of capacitive loads (e.g., LED drivers with high inrush). Integrated current measurement enables status feedback, fault detection, and energy tracking. Ideal for automated lighting and motor loads in residential and commercial installations.
EAN
3250616059917
Packaging
1 Piece
KNX 6-fold Output Actuator 16A C-Load with current monitoring TYA606E
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Dimensions
-
Number of width units6
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Rated current16 A
-
Bus current consumption while idle5 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V2300 - 2300 W
-
Output power2300 W
-
230 V incandescent and halogen lamp2300 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
FunctionWith operating hours meter
-
Type of connectionWith plug-in terminals
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

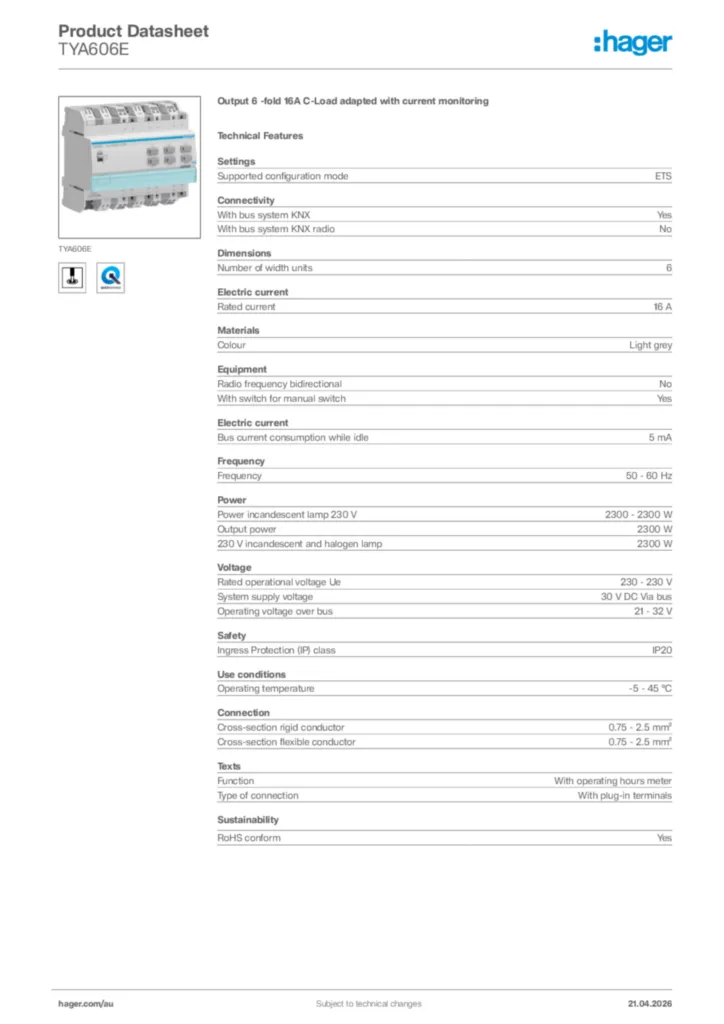

Hager Product data sheet TYA606E
Output 6 -fold 16A C-Load adapted with current monitoring
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL 2010-01-14
PDF1,75 MB -
KNX product database
Logiciel d'application ETS du TYB606E
KNX product database International 2020-01-01
VD5641,27 kB
Logiciel d'application ETS du TYB606E
KNX product database International 2020-01-01
KNXPROD448,92 kB -
Application Guide
Description d'application ETS TYA606E EN
Application Guide en-GB, pl-PL 2013-10-28
PDF4,01 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-03-04
PDF137,59 kB
