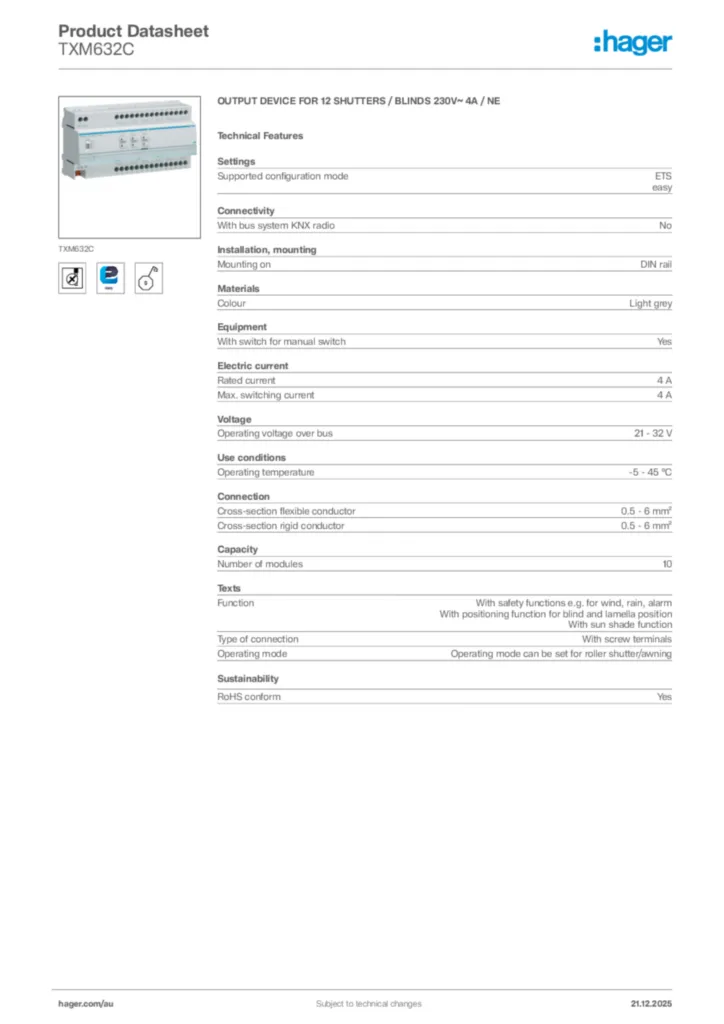

OUTPUT DEVICE FOR 12 SHUTTERS / BLINDS 230V~ 4A / NE TXM632C

EAN
3250616048737
Packaging
1 Piece

Technical properties

Architecture
  • Bus system
    KNX
  • Number of blinds/shutters outputs
    12
Functions
  • Bus module detachable
    No
  • Multi-phase mode
    suitable to switch different external conductors
  • Function
    with sun shade function ; with safety functions e.g. for wind, rain, alarm ; with positioning function for blind and lamella position
  • Operating mode
    operating mode can be set for roller shutter/awning
Configuration
  • Number of modules
    10
Controls and indicators
  • Indicator lamp
    yes
  • Operation
    manual operation per channel using button (single-area operation) ; Manual operation can be activated via selection switch, thereby deactivation of the KNX function
  • Control
    for activation of an AC drive per actuator channel
  • Indication / display
    status LED integrated in the manual operation button
  • Manual selection switches / push-buttons
    6 manual operation buttons for up/down per channel/device
  • Button / push-button
    with illuminated programming button
Main electrical features
  • Type of supply voltage
    AC
  • Frequency
    50/60 Hz
  • Rated current
    4 A
Voltage
  • Auxiliary voltage
    230…240 V AC
  • Operating voltage over bus
    21…32 V DC
  • System supply voltage
    30V DC via bus
Electric current
  • Bus current consumption (data transfer)
    7 mA
  • Bus current consumption (idle)
    5 mA
  • Number of entry circuits
    0
  • Maximum switching current
    4 A
  • Switching current at cos φ = 0.6
    max. 4 A
Dimensions
  • Width of rail mounted device (RMD)
    10 modules
  • Height
    90 mm
Power
  • Contact rating with 230 V in AC1
    920 W
Materials
  • Colour
    light grey
LED control
  • LED
    Status LED integrated in manual operation button
Connection
  • Connection cross-sect. flexible conductor
    0,5 / 6mm²
  • Connection cross-sect. rigid cable
    0,5 / 6mm²
  • Conductor cross-section (flexible)
    0.75…2.5 mm²
  • Conductor cross-section (rigid)
    0.75…2.5 mm²
  • Bus coupling unit
    with integral bus coupling unit
  • Bus connection
    bus connection via connecting terminal
Settings
  • Supported configuration modes
    system, easy
  • Setting
    Switching time on change of direction is preset
Scope of delivery
  • Bus connection included
    Yes
Equipment
  • Modular expandability
    No
Safety
  • Protection index IP
    IP20
  • REACH conform
    No
  • RoHS conform
    Yes
  • Halogen free
    No
Use conditions
  • Operating temperature
    -5…45 °C
  • Storage/transport temperature
    -20…70 °C
Identification
  • Device family
    TXM
  • Main design line
    KNX
