Output module 2x 6A /230V~, flush mounted, KNX TXB602F

EAN

3250616048898

Packaging

1 Piece

Technical properties
Documentations
Accessories

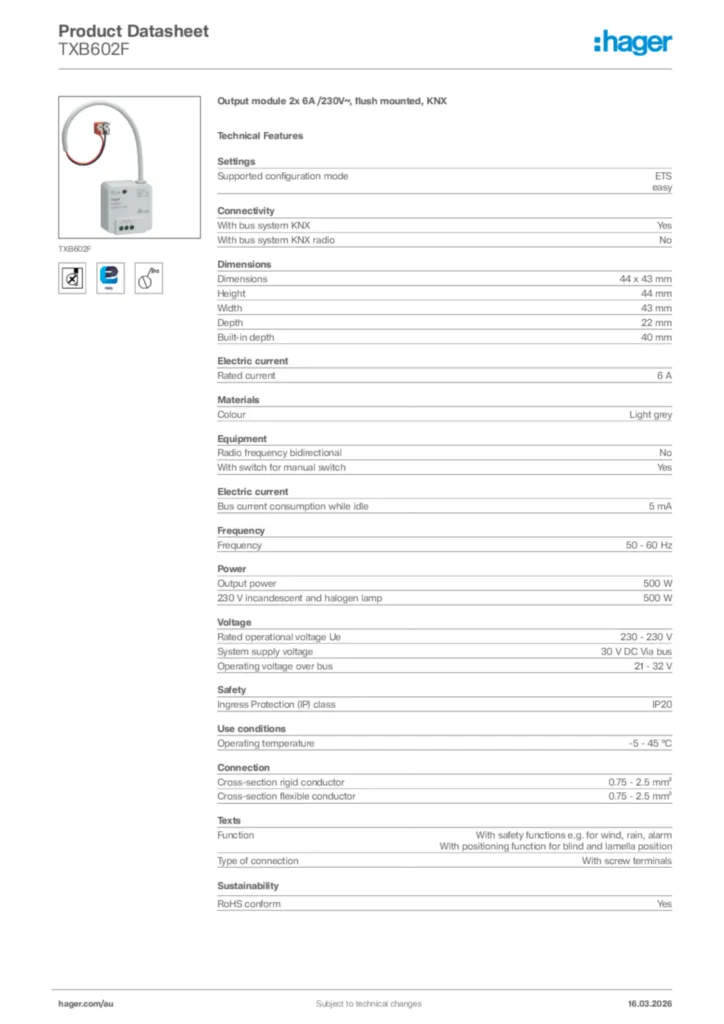

Download the data sheet

Technical properties

Bus system

yes
Number of blinds/shutters outputs

1

Multi-phase mode

for 1 phase operation
Function

with positioning function for blind and lamella position ; with safety functions e.g. for wind, rain, alarm
Switching

for switching e.g. 2 independent loads or activation of a drive

Number of modules

0

Indicator lamp

yes
Operation

test mode/building site mode can be activated via programming button ; manual operation in test mode via programming button (single-area operation)
Control

for activation of a drive for alternating current
Button / push-button

with illuminated programming button

Rated operational voltage Ue

230 V
Rated current

6 A

Max. switching capacity at

230 V AC
Operating voltage over bus

21…32 V DC
Output voltage

230 V AC
System supply voltage

30V DC via bus

Bus current consumption (data transfer)

7 mA
Bus current consumption (idle)

5 mA
Number of entry circuits

0
Maximum switching current

6 A
Maximum through current

6 A
Rated current

6 A
Switching current at cos φ = 0.8

max. 6 A
Withstand current in AC1 for the contact path or zone 1

6 A

Height of installed product

44 mm
Dimensions (LLxwwxhh)

44 x 43 x 22 mm
Width of rail mounted device (RMD)

0 modules
Height

44 mm

Max. power with electronic transfo.

500 W
Total power loss under IN

0.5 W
Output power

500 W
Max. switching power

1200 W
Conventional transformers

500 VA
Electronic transformers

500 W

Input scanning voltage

12 V DC V DC

Fluorescent lamps with electronical ballast (EB)

6 x 48 W
- uncompensated

500 VA

Energy-saving lamps

5 x 13 W
Power lighting fluo lamps

5 x 13W
Max. power fluo. duo lamp comp. series

6 x 48W

Max number of LED/CFL lamps

5
230V LED lamps

5 x 13 W
Power LED

65 W

Max. power with incandescent lamps

500 W
230 V incandescent lamps and halogen lamps

500 W

Connection cross-sect. flexible conductor

0,75 / 2,5mm²
Connection cross-sect. rigid cable

0,75 / 2.5mm²
Conductor cross-section (flexible)

0.75…2.5 mm²
Conductor cross-section (rigid)

0.75…2.5 mm²
Number of contacts

2
Type of contacts

2NO
Bus coupling unit

with integral bus coupling unit
Type of connection

with screw terminals
Bus connection

bus connection via pre-assembled cable with bus connection terminal
Type of connection

with screw

Supported configuration modes

easy, system
Setting

Switching time on change of direction is preset

Bus connection included

Yes

Number of outputs

2
Modular expandability

No

Differentiation characteristic 3 - Sales

with screw terminals

REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-5…45 °C
Storage/transport temperature

-20…70 °C

Device family

TXB
Main design line

KNX
