Output module 1x 10A /230V~, flush mounted, KNX TXB601B

EAN

3250616048904

Packaging

1 Piece

Technical properties
Documentations
Accessories

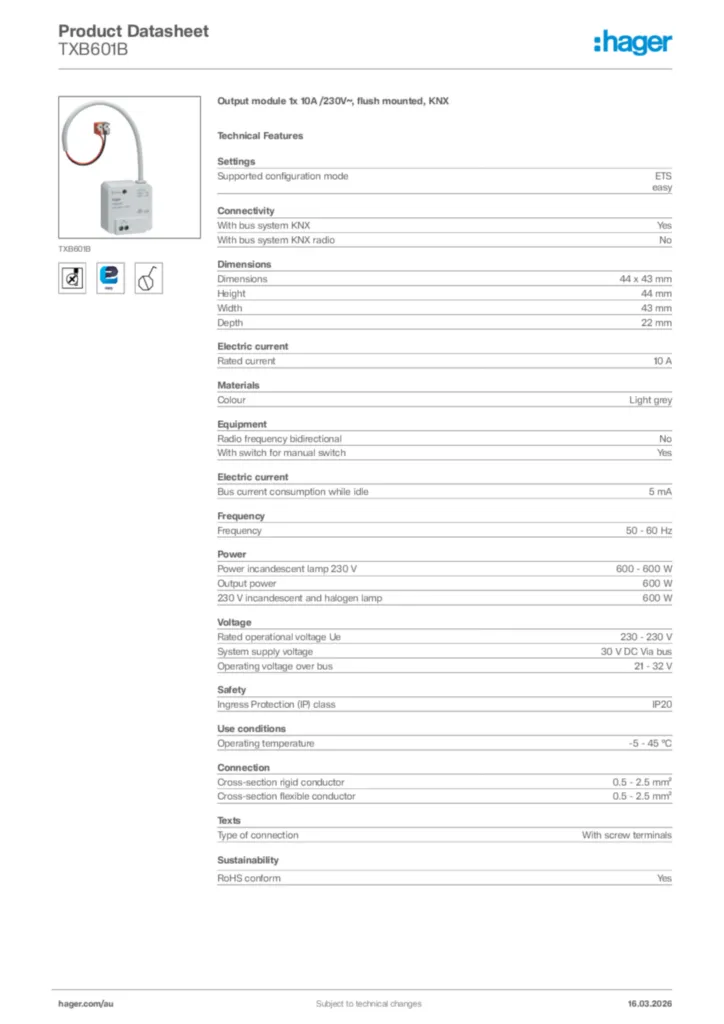

Download the data sheet

Technical properties

Bus system

yes

Multi-phase mode

for 1 phase operation
Switching

for switching e.g. 1 load

Number of modules

0

Indicator lamp

yes
Operation

test mode/building site mode can be activated via programming button ; manual operation in test mode via programming button (single-area operation)
Button / push-button

with illuminated programming button/button for manual operation

Rated operational voltage Ue

230 V
Rated current

10 A

Max. switching capacity at

230 V AC
Operating voltage over bus

21…32 V DC
Output voltage

230 V AC
System supply voltage

30V DC via bus

Bus current consumption (data transfer)

7 mA
Bus current consumption (idle)

5 mA
Number of entry circuits

0
Maximum through current

10 A
Rated current

10 A
Max. switching current

10 A
Switching current at cos φ = 0.8

max. 10 A
Withstand current in AC1 for the contact path or zone 1

10 A

Height of installed product

44 mm
Dimensions (LLxwwxhh)

44x43x22 mm
Width of rail mounted device (RMD)

0 modules
Height

44 mm

Max. power with electronic transfo.

600 W
Breaking capacity

max. 600 W
Total power loss under IN

0.6 W
Output power

600 W
Max. switching power

600 W
Conventional transformers

600 VA
Electronic transformers

600 W

Fluorescent lamps with electronical ballast (EB)

6 x 58 W

Energy-saving lamps

5 x 15 W
Power lighting fluo lamps

5 x 15W
Max. power fluo. duo lamp comp. series

6 x 58W

230V LED lamps

5 x 15 W
Power LED

75 W

Max. power with incandescent lamps

600 W
230 V incandescent lamps

600 W
230 V halogen lamps

600 W
230 V incandescent lamps and halogen lamps

600 W

Connection cross-sect. flexible conductor

0,5 / 2,5mm²
Connection cross-sect. rigid cable

0,5 / 2,5mm²
Conductor cross-section (flexible)

0.5…2.5 mm²
Conductor cross-section (rigid)

0.5…2.5 mm²
Number of contacts

1
Type of contacts

1NO
Bus coupling unit

with integral bus coupling unit
Type of connection

with screw terminals
Bus connection

bus connection via pre-assembled cable with bus connection terminal
Type of connection

with screw

Supported configuration modes

system, easy

Bus connection included

Yes

Box

installation in flush-mounted or splash-protected junction box

Modular expandability

No
Potential-free

with potential-free normally-open contact

REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-5…45 °C
Storage/transport temperature

-20…70 °C

Device family

TXB
Main design line

KNX
