Binary input 2 fold + LED output 2 fold, flush mounted, KNX TXB322
EAN
3250616049079
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists

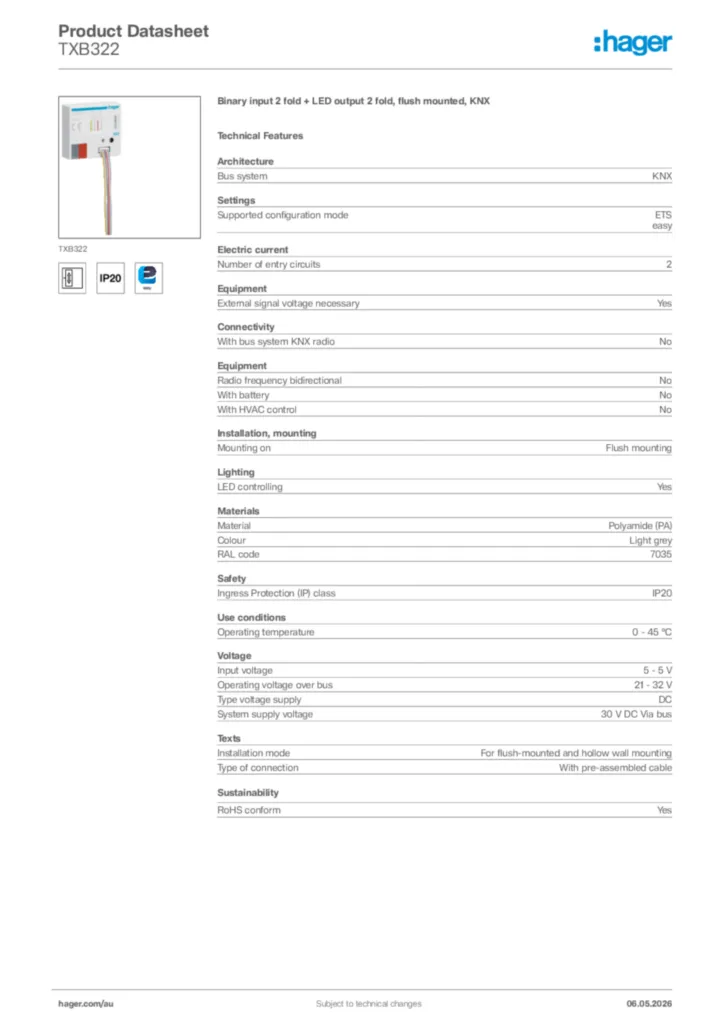

Technical properties
Architecture
-
Bus systemEIB
Functions
-
Bus module detachableNo
-
Easy link functionsSwitching functions, dimming functions, blind control functions functions, priority functions, scene functions, heating functions and timer functions
-
ETS additional functionsETS additional functions: value transmitter 1 and 2 bytes, 2-channel mode, level switch function
Compatibility
-
Extension unitextension unit for light scene push-button
Controls and indicators
-
Button / push-buttonwith programming button and red programming LED
Connectivity
-
Binary inputswith 2 independent binary inputs for potential-free contacts
Voltage
-
Input voltage5 V
-
Operating voltage over bus21…32 V DC
-
System supply voltage30V DC via bus
Electric current
-
Number of entry circuits2
-
Intensity by input0.85 mA
Dimensions
-
Dimensions (LLxwwxhh)38 x 35 x 12 mm
-
Width of rail mounted device (RMD)0 modules
Length
-
Max distance to switches5 mm
Measurement
-
Input scanning voltageper channel 5 V
Installation, mounting
-
Installation modefor flush-mounted and hollow-wall mounting
Connection
-
Conductor cross-section (flexible)0.75…2.5 mm²
-
Conductor cross-section (rigid)0.75…2.5 mm²
-
Connection toPotential free, switch, push button, automation system
-
Bus coupling unitwith integral bus coupling unit
-
Type of connectionwith pre-assembled cable
-
Bus connectionbus connection via connecting terminal
Cable
-
Cable length extendable tomax. 5 m
Settings
-
Supported configuration modessystem, easy
Scope of delivery
-
Bus connection includedYes
Use
-
Differentiation characteristic 3 - Saleswith integral bus coupling unit
Safety
-
REACH conformNo
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature0…45 °C
-
Storage/transport temperature-20…70 °C
Identification
-
Main design lineKNX
