DIMMER 1 CHANNEL 600W NE TXA661B

EAN
3250616048713
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable.

DIMMER 1 CHANNEL 600W NE

TXA661B

  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Technical properties

Voltage
  • Oper­ating voltage over bus
    21 - 32 V
  • Input voltage
    230 - 230 V
  • System supply voltage
    30 V DC Via bus
  • Auxil­iary tension
    230 - 230 V
Elec­tric current
  • Bus current consump­tion data transfer
    2,30 mA
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    0.75 - 2.5 mm²
  • Cross-sec­tion rigid conductor
    0.75 - 2.5 mm²
Equip­ment
  • Number of outputs
    1
  • Type of dimmer
    Dimming actu­ator
Lighting
  • LED lamp power
    120 W
Capa­city
  • Number of modules
    4
Power
  • 230 V incan­des­cent and halogen lamp
    600 W
  • Power incan­des­cent lamp
    600 - 600 W
  • Power of vari­ator
    600 - 600 W
Connectivity
  • With bus system KNX radio
    No
  • Type of connec­tion
    quick­con­nect
Settings
  • Supported config­ur­a­tion mode
    ETS, easy
Texts
  • Fuse
    Over­heating protec­tion (dis­play using LEDs), Short-­cir­cuit and over­load-­proof (elec­tronic fuse), Short-­cir­cuit proof and over­load-­proof (dis­play using LEDs)
  • Dimming prin­ciple
    Phase cut-on or cut-off according to load type, self-learning, Minim­um/max­imum dimming values per channel settable on device
  • Func­tion
    Learning func­tion for optim­ised oper­a­tion of compact fluor­es­cent lamps and LED lumin­aires can be activ­ated via the bus
  • Type of connec­tion
    With quick­con­nect plug-in terminals
  • Labelling
    Large labelling field
  • Protec­tion
    With over­heat­ing, over­load and short-­cir­cuit protec­tion

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration TXA661B
PDF
Hager RoHS report TXA661B
PDF

Downloads

  • Product image

    Image TXA661B | Hager Australia

    Product Image TXA661B

  • Product datasheet

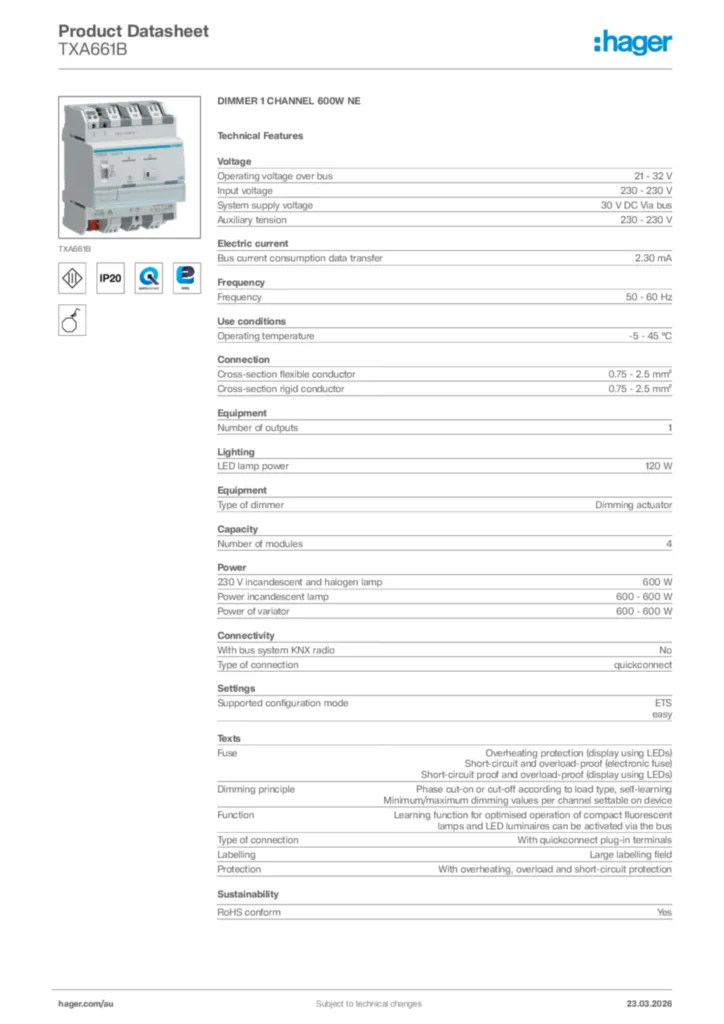

    Image Hager Product data sheet TXA661B | Hager Australia

    Hager Product data sheet TXA661B

    DIMMER 1 CHANNEL 600W NE

    PDF

  • Installation manual

    Image Installation manual en-GB, pl-PL 2017-02-22 | Hager Australia

    Installation manual en-GB, pl-PL 2017-02-22

    PDF
    564,25 kB

  • KNX product database

    Image ETS Database for TXA661B | Hager Australia

    ETS Database for TXA661B

    KNX product database en-GB, fr-FR, de-DE, pl-PL 2023-08-25

    KNXPROD
    158,19 kB

  • Declaration of conformity

    Image Declaration | Hager Australia

    Declaration

    Declaration of conformity International 2021-12-13

    PDF
    136,74 kB
