OUTPUT DEVICE FOR 8 SHUTTERS / BLINDS 230V~ 6A / NE TXA628C
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical properties
Settings
-
Supported configuration modeETS, easy
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onDIN rail
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current6 A
-
Max. switching current6 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Capacity
-
Number of modules6
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
-
Operating modeOperating mode can be set for roller shutter/awning
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

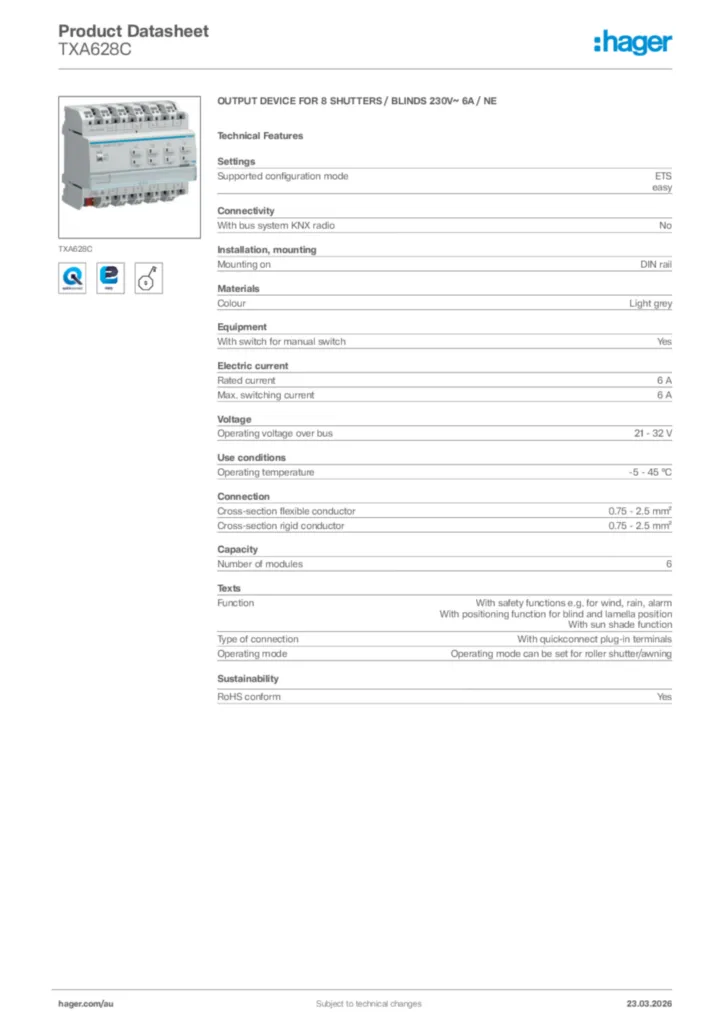

Hager Product data sheet TXA628C
OUTPUT DEVICE FOR 8 SHUTTERS / BLINDS 230V~ 6A / NE
PDF -
KNX product database
ETS Database for TXA628C
KNX product database en-GB, fr-FR, de-DE, pl-PL 2020-01-01
KNXPROD725,20 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-12-02
PDF127,35 kB
