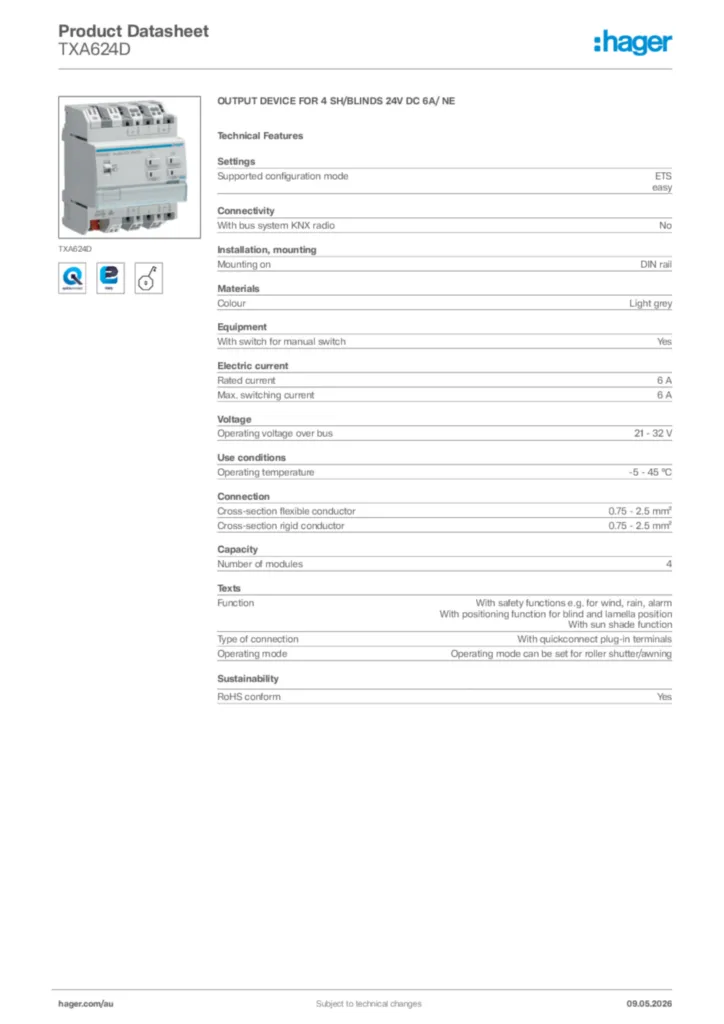

OUTPUT DEVICE FOR 4 SH/BLINDS 24V DC 6A/ NE TXA624D
EAN
3250616048768
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemKNX
-
Number of blinds/shutters outputs4
-
Fixing modeREG
Functions
-
Bus module detachableNo
Configuration
-
Number of modules4
Controls and indicators
-
Indicator lampyes
-
Manual selection switches / push-buttons4 manual operation buttons for up/down per channel/device
Main electrical features
-
Rated current6 A
Voltage
-
Operating voltage over bus21…32 V DC
-
System supply voltage30V DC via bus
Electric current
-
Bus current consumption (data transfer)5 mA
-
Bus current consumption (idle)3 mA
-
Number of entry circuits0
-
Maximum switching current6 A
-
Switching current at 24 V=6 A
Dimensions
-
Width of rail mounted device (RMD)4 modules
-
Height90 mm
Power
-
Contact rating with 230 V in AC11200 W
Materials
-
Colourlight grey
Connection
-
Conductor cross-section (flexible)0.75…2.5 mm²
-
Conductor cross-section (rigid)0.75…2.5 mm²
-
Number of contacts4
-
Bus coupling unitwith integral bus coupling unit
-
Bus connectionbus connection via connecting terminal
Settings
-
Supported configuration modessystem
Scope of delivery
-
Bus connection includedYes
Equipment
-
Modular expandabilityNo
Safety
-
Protection index IPIP20
Use conditions
-
Operating temperature-5…45 °C
-
Storage/transport temperature-20…70 °C
Identification
-
Main design lineKNX
