Output module 8x 16A (C)/230V~, KNX TXA608D

EAN

3250616048829

Packaging

1 Piece

Technical properties
Documentations
Accessories

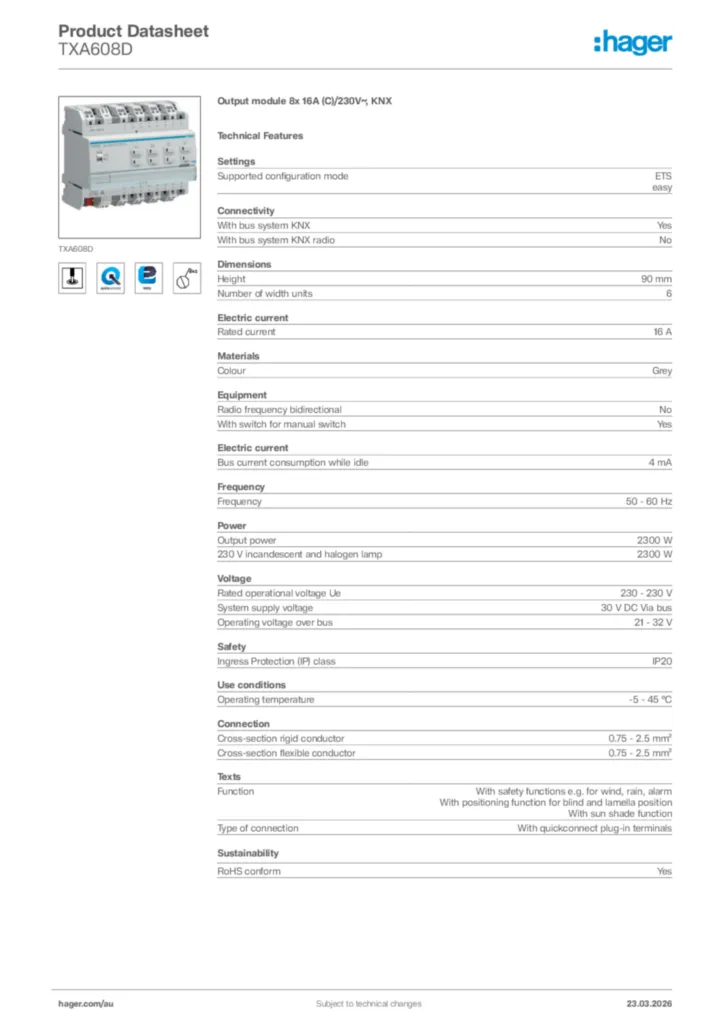

Download the data sheet

Technical properties

Bus system

yes

Multi-phase mode

suitable to switch different external conductors
Function

with positioning function for blind and lamella position ; with safety functions e.g. for wind, rain, alarm ; with sun shade function
Switching

for switching, e.g. of 8 independent loads or activation of 4 drives
Operating mode

any combined operation from drive and switching functions possible

Number of modules

6

Indicator lamp

yes
Operation

Manual operation can be activated via selection switch, thereby deactivation of the KNX function
Indication / display

status LED integrated in the manual operation button
Manual selection switches / push-buttons

manual operation buttons for on/off (up/down) and bus function on/off per channel/device
Button / push-button

with illuminated programming button

Rated operational voltage Ue

230 V
Frequency

50/60 Hz
Rated current

16 A

Operating voltage over bus

21…32 V DC
Output voltage

230 V AC
System supply voltage

30V DC via bus

Bus current consumption (data transfer)

6 mA
Bus current consumption (idle)

4 mA
Number of entry circuits

0
Maximum through current

16 A
Rated current

16 A

Width of rail mounted device (RMD)

6 modules
Height

90 mm

Max. power with electronic transfo.

1200 W
Output power

2300 W
Max. switching power

11500 W
Conventional transformers

1600 VA
Electronic transformers

1200 W

Fluorescent lamps with electronical ballast (EB)

20 x 36 W
- uncompensated

1200 W

Energy-saving lamps

23 W
Power lighting fluo lamps

18x23W
Fluorescent lamps parallel compensated

1500 W /200 µF

Max number of LED/CFL lamps

18
230V LED lamps

18 x 23 W
Power LED

216 W
LED

Status LED integrated in manual operation button

Max. power with incandescent lamps

2300 W
230 V incandescent lamps and halogen lamps

2300 W

Connection cross-sect. flexible conductor

0,75 / 2,5mm²
Connection cross-sect. rigid cable

0,75 / 2.5mm²
Type of load

C-Load
Conductor cross-section (flexible)

0.75…2.5 mm²
Conductor cross-section (rigid)

0.75…2.5 mm²
Type of contacts

8NO
Bus coupling unit

with integral bus coupling unit
Type of connection

with QuickConnect plug-in terminals
Bus connection

bus connection via connecting terminal
Type of connection

quick connect

Supported configuration modes

easy, system
Setting

Switching time on change of direction is preset

Bus connection included

Yes

Number of outputs

8
Modular expandability

No

Differentiation characteristic 3 - Sales

with plug-in terminals

REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-5…45 °C
Storage/transport temperature

-20…70 °C

Device family

TXA
Main design line

KNX
