Output module 4x 10A /230V~, KNX TXA606B

EAN

3250616048850

Packaging

1 Piece

Technical properties
Documentations
Accessories

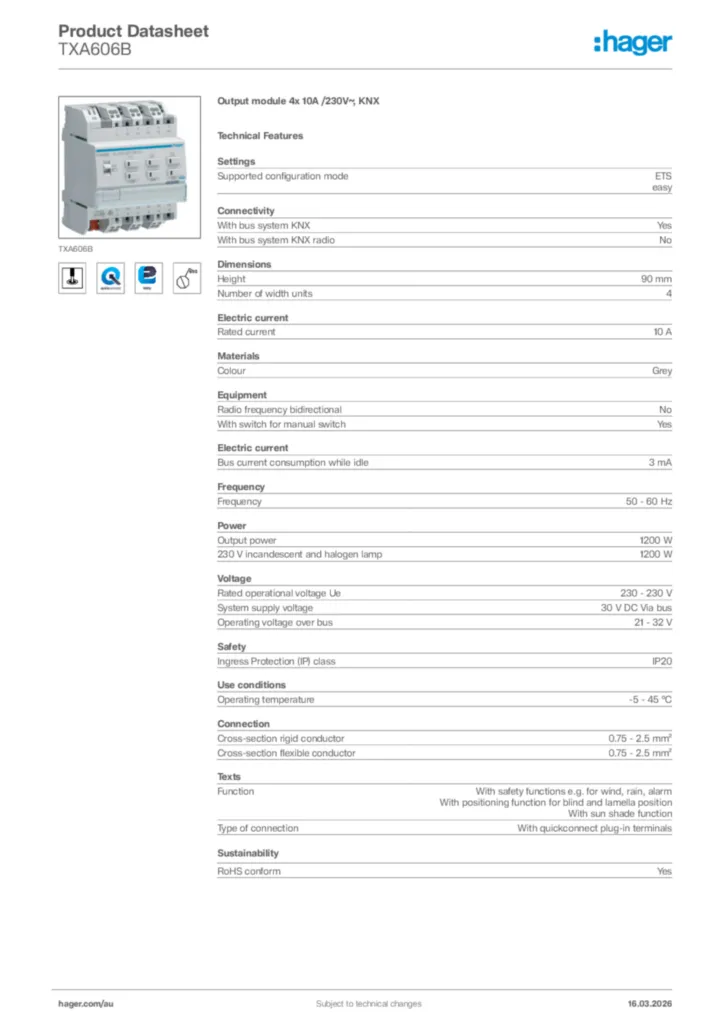

Download the data sheet

Technical properties

Bus system

yes

Multi-phase mode

suitable to switch different external conductors
Function

with positioning function for blind and lamella position ; with safety functions e.g. for wind, rain, alarm ; with sun shade function
Switching

For switching, e.g. of 6 independent loads or activation of 3 drives
Operating mode

any combined operation from drive and switching functions possible

Number of modules

4

Indicator lamp

yes
Operation

Manual operation can be activated via selection switch, thereby deactivation of the KNX function
Indication / display

status LED integrated in the manual operation button
Manual selection switches / push-buttons

manual operation buttons for on/off (up/down) and bus function on/off per channel/device
Button / push-button

with illuminated programming button

Rated operational voltage Ue

230 V
Frequency

50/60 Hz
Rated current

10 A

Operating voltage over bus

21…32 V DC
Output voltage

230 V AC
System supply voltage

30V DC via bus

Bus current consumption (data transfer)

5 mA
Bus current consumption (idle)

3 mA
Number of entry circuits

0
Maximum through current

10 A
Rated current

10 A

Width of rail mounted device (RMD)

4
Height

90 mm

Max. power with electronic transfo.

1000 W
Output power

1200 W
Max. switching power

5400 W
Conventional transformers

1200 VA
Electronic transformers

1000 W

Fluorescent lamps with electronical ballast (EB)

15 x 36 W
- uncompensated

1000 W

Energy-saving lamps

12 x 23 W
Power lighting fluo lamps

12x23W
Max. power fluo. duo lamp comp. series

15 x 36 W

Max number of LED/CFL lamps

12
230V LED lamps

12 x 23 W
Power LED

144 W
LED

Status LED integrated in manual operation button

Max. power with incandescent lamps

1200 W
230 V incandescent lamps and halogen lamps

1200 W

Connection cross-sect. flexible conductor

0,75 / 2,5mm²
Connection cross-sect. rigid cable

0,75 / 2.5mm²
Conductor cross-section (flexible)

0.75…2.5 mm²
Conductor cross-section (rigid)

0.75…2.5 mm²
Type of contacts

6NO
Bus coupling unit

with integral bus coupling unit
Type of connection

with QuickConnect plug-in terminals
Bus connection

bus connection via connecting terminal
Type of connection

quick connect

Supported configuration modes

easy, system
Setting

Switching time on change of direction is preset

Bus connection included

Yes

Number of outputs

6
Modular expandability

No

Differentiation characteristic 3 - Sales

with plug-in terminals

REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-5…45 °C
Storage/transport temperature

-20…70 °C

Device family

TXA
Main design line

KNX
