TXA111 - Power supply 30V DC 320 mA

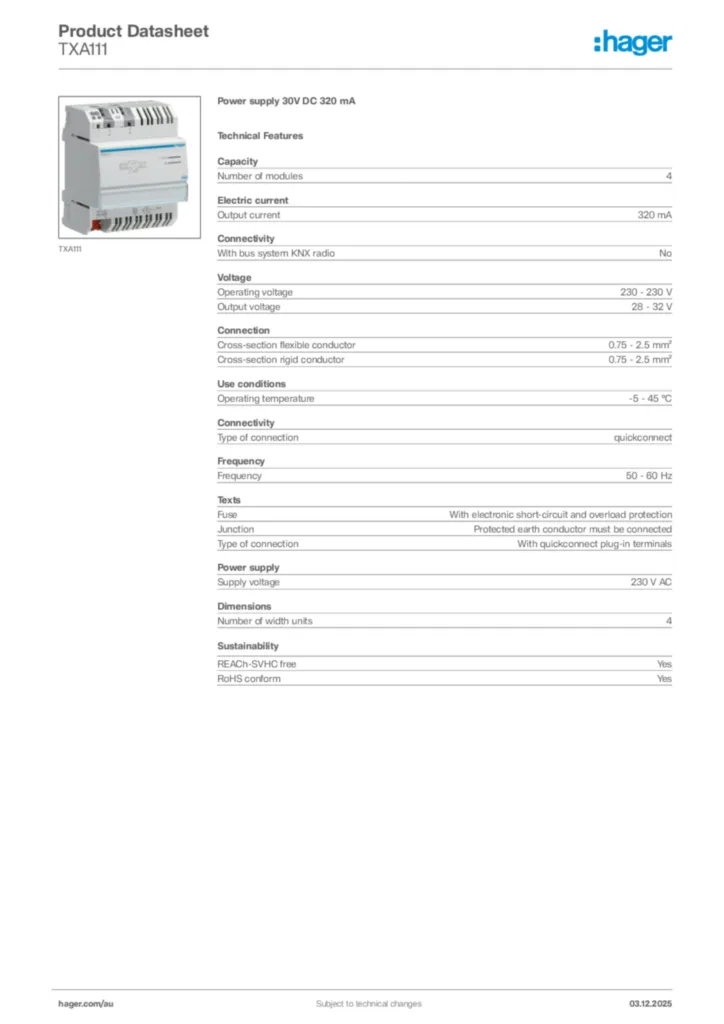

Image TXA111 of the product Hager Australia | Hager Australia
Image TXA111 of the product Hager Australia | Hager Australia
TXA111 - Power supply 30V DC 320 mA
Image TXA111 of the product Hager Australia | Hager Australia
Image TXA111 of the product Hager Australia | Hager Australia

Power supply 30V DC 320 mA TXA111

EAN
3250616049451
Packaging
1 Piece

Technical properties

Architecture
  • Bus system
    EIB
Configuration
  • Number of modules
    4
Connectivity
  • Bus lines
    1
Main electrical features
  • Frequency
    50/60 Hz
Voltage
  • Output voltage
    30 V
  • Output voltage
    28…32 V
  • Filtered output voltage
    30V +/- 2V
Electric current
  • Output current
    max. 320 mA
  • Ouput intensity
    320 mA
Dimensions
  • Depth of installed product
    64 mm
  • Height of installed product
    90 mm
  • Length
    64 mm
  • Width of installed product
    72 mm
Power
  • Total power loss under IN
    15 W
Materials
  • Colour
    stone grey
Connection
  • Connection cross-sect. flexible conductor
    0,75 / 2,5mm²
  • Connection cross-sect. rigid cable
    0,75 / 2.5mm²
  • Conductor cross-section (flexible)
    0.75…2.5 mm²
  • Conductor cross-section (rigid)
    0.75…2.5 mm²
  • Type of connection
    quick connect
Use
  • Differentiation characteristic 1 - Sales
    with labelling field
Safety
  • Protection index IP
    IP20
Use conditions
  • Operating temperature
    -5…45 °C
  • Storage/transport temperature
    -20…70 °C
