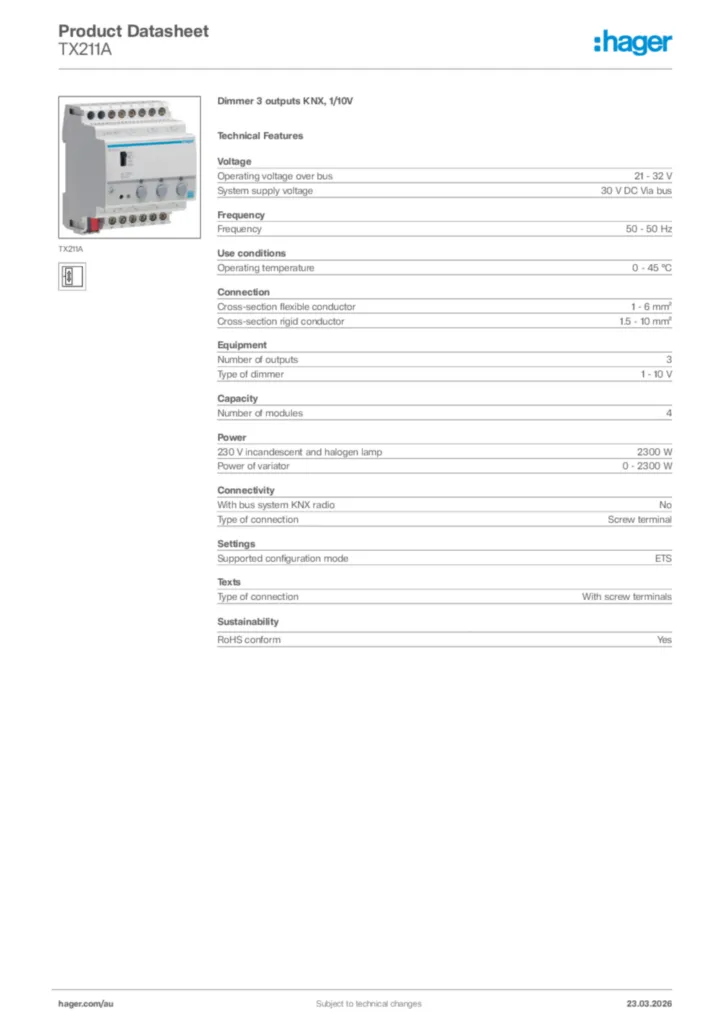

Dimmer 3 outputs KNX, 1/10V TX211A
EAN
3250617574037
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Bus systemKNX
Functions
-
Multi-phase modesuitable to switch different external conductors
-
Switchingfor switching and controlling electronic ballasts and 1 - 10 V Tronic transformers, 105 W
Configuration
-
Number of modules4
Controls and indicators
-
Indicator lampyes
-
Operationmanual operation also possible without bus, e.g. on building site
-
Manual selection switches / push-buttonswith manual selection switch per channel for on/off and status indication
-
Button / push-buttonwith programming button
Main electrical features
-
Frequency50 Hz
-
Rated current50 A
Voltage
-
Operating voltage over bus21…32 V DC
-
System supply voltage30V DC via bus
Electric current
-
Control currentper channel 50 mA
-
Switching current (ohmic)16 A
-
Switching current16 A
Dimensions
-
Width of rail mounted device (RMD)4 modules
Power
-
Total power loss under IN9 W
-
Conventional transformers1500 VA
-
Power of the variator0 / 2300 W
-
Electronic transformersper channel 1500 W
Materials
-
Colour independent of design lineslight grey
-
RAL colourRAL 7035 - Light grey
Lighting control
-
Fluorescent lamps with electronical ballast (EB)per channel 1000 W
LED control
-
LEDwith red programming LED and red status LED
Incandescent bulbs control
-
230 V incandescent lamps and halogen lampsper channel 2300 W
Connection
-
Connection cross-sect. flexible conductor1 / 6mm²
-
Connection cross-sect. rigid cable1,5 / 10mm²
-
Type of loaduniversal
-
Conductor cross-section (flexible)1…6 mm²
-
Conductor cross-section (rigid)1.5…10 mm²
-
Bus coupling unitwith integral bus coupling unit
-
Type of connectionwith screw terminals
-
Bus connectionbus connection via connecting terminal
Settings
-
Supported configuration modessystem
-
Settingbasic brightness programmable
-
Parameterisationbehaviour in the event of bus voltage failure parameterisable
Scope of delivery
-
Bus connection includedYes
Equipment
-
Type of dimmer1 - 10V
-
Modular expandabilityNo
-
Potential-freewith potential-free NO contacts
Safety
-
REACH conformNo
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature0…45 °C
-
Storage/transport temperature-20…70 °C
Identification
-
Main design lineKNX
