The Hager Cat 6 STP data patch module delivers reliable Gigabit Ethernet for structured cabling. Shielded to minimize EMI, it features RJ45 with cutting terminal for secure terminations on AWG 26-22 circular cables. Compact (90×17.5×62 mm) in light grey, it’s ideal for patch panels and outlets where space and signal integrity matter. Tool-assisted wiring ensures durable, stable connections. Designed installation in residential & commercial switchboards,suitable for DIN rail mounting.

EAN

3250615949974

Packaging

1 Piece

vega D

Hager Cat6 Shielded RJ45 Data Patch Module, Cutting Terminal, AWG 26-22 TN002S

Technical properties
Environmental value
Documentations
More products

Download the data sheet

Technical properties

Category

Cat6

AWG range

AWG 26-22

Connector/plug type

Cutting terminal, RJ45

Height

90 mm
Width

17,50 mm
Depth

62 mm

Shielded

Yes
Suitable for circular cable

Yes

Suitable for multi-wire core

No
Suitable for solid core

No

Suitable for flat cable

No

Colour

Light grey

Connection without tools

No

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes

Certifications and documents

PEP document en-GB 2022-05-02

PDF

318,04 kB

REACH declaration TN002S

PDF

RoHS report TN002S

PDF

Downloads

Product image

Product Image TN002S

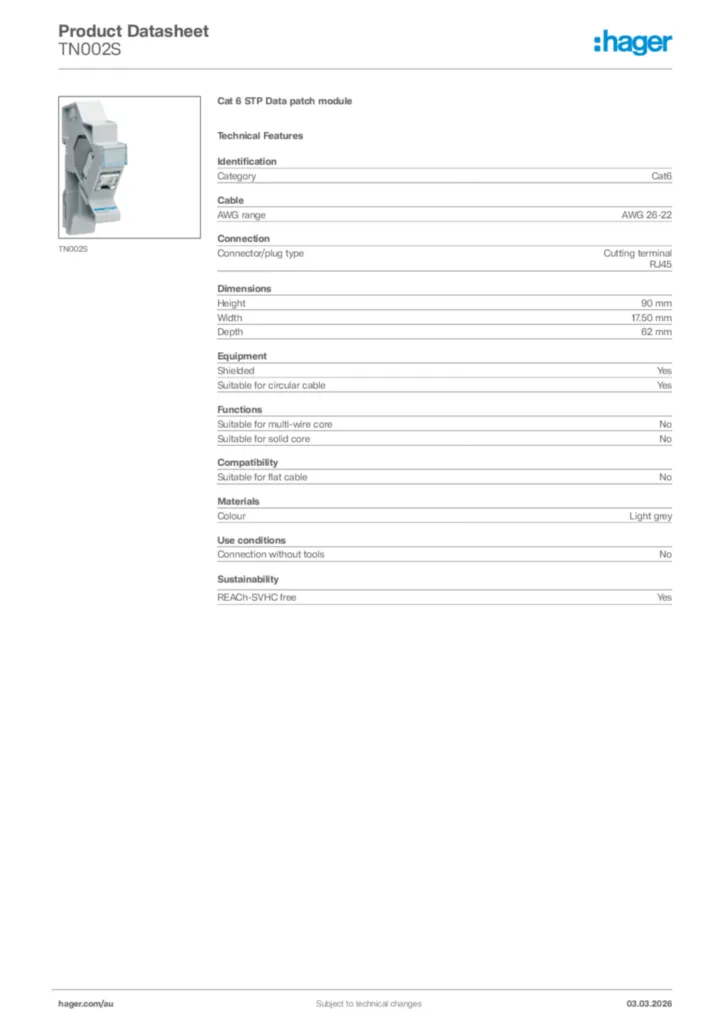

Product datasheet

Hager Product data sheet TN002S

Cat 6 STP Data patch module

PDF
Installation manual

Installation manual en-GB, fr-FR, pt-PT, sv-SE 2021-10-04

PDF

698,96 kB
Declaration of conformity

Declaration

Declaration of conformity International 2021-01-28

PDF

122,04 kB

Declaration of conformity en-GB 2024-10-17

PDF

171,64 kB
