3Ph Kwhmeter via CT with KNX output TE370
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modeETS
Use conditions
-
Operating temperature-10 - 55 °C
Architecture
-
Bus systemKNX
-
Type of pole3P+N
Connectivity
-
With bus system PowernetNo
-
Type of connectionDirect connection
Electric current
-
Maximum measuring circuit current5 A
-
Bus current consumption data transfer8 mA
Voltage
-
Operating voltage over bus21 - 32 V
Frequency
-
Frequency50 - 60 Hz
Capacity
-
Number of modules4
Installation, mounting
-
Mounting onDIN rail
Texts
-
TerminalWith connecting terminal for tariff input (HT/NT), With 3-phase mains connection terminal, 3x connecting terminals for current transformers
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

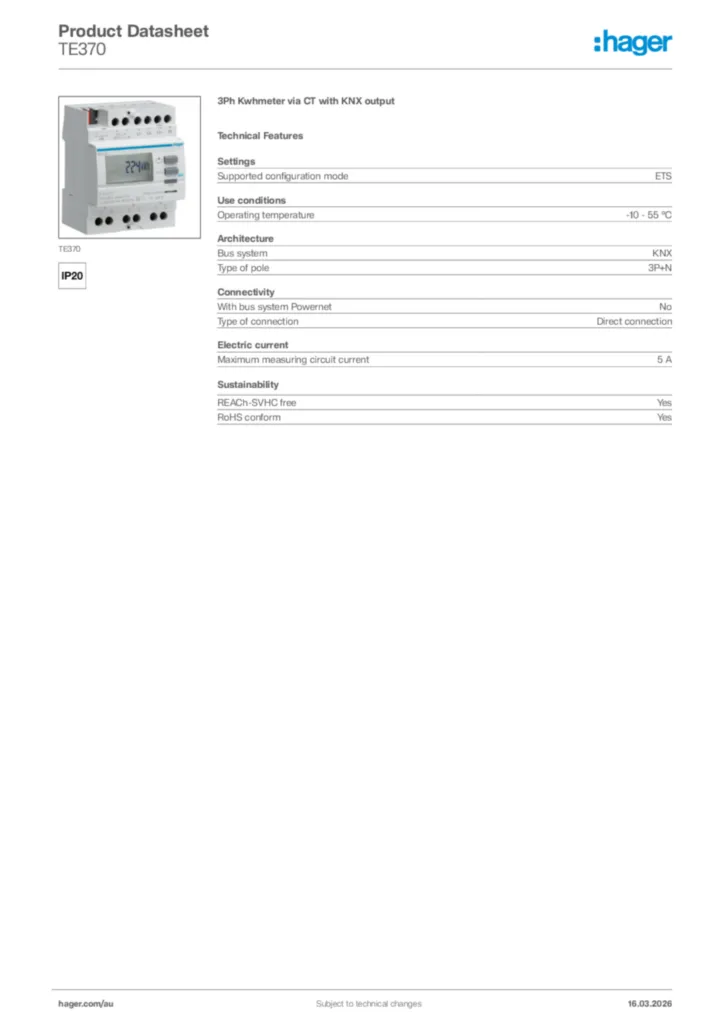

Hager Product data sheet TE370
3Ph Kwhmeter via CT with KNX output
PDF -
Installation manual
Notice TE370 SE-GB-NO-PT
Installation manual en-GB, nn-NO, pl-PL, pt-PT, sv-SE 2020-01-01
PDF249,06 kB -
KNX product database
Logiciel d'application ETS du TE370
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2023-08-25
VD270,51 kB -
Application Guide
Description d'application TE360_TE370
Application Guide en-GB, pl-PL 2020-01-01
PDF400,43 kB -
Product data sheet
UK_MD_TDS_KwHMeters
Product data sheet en-GB 2024-03-22
PDF47,29 kB
