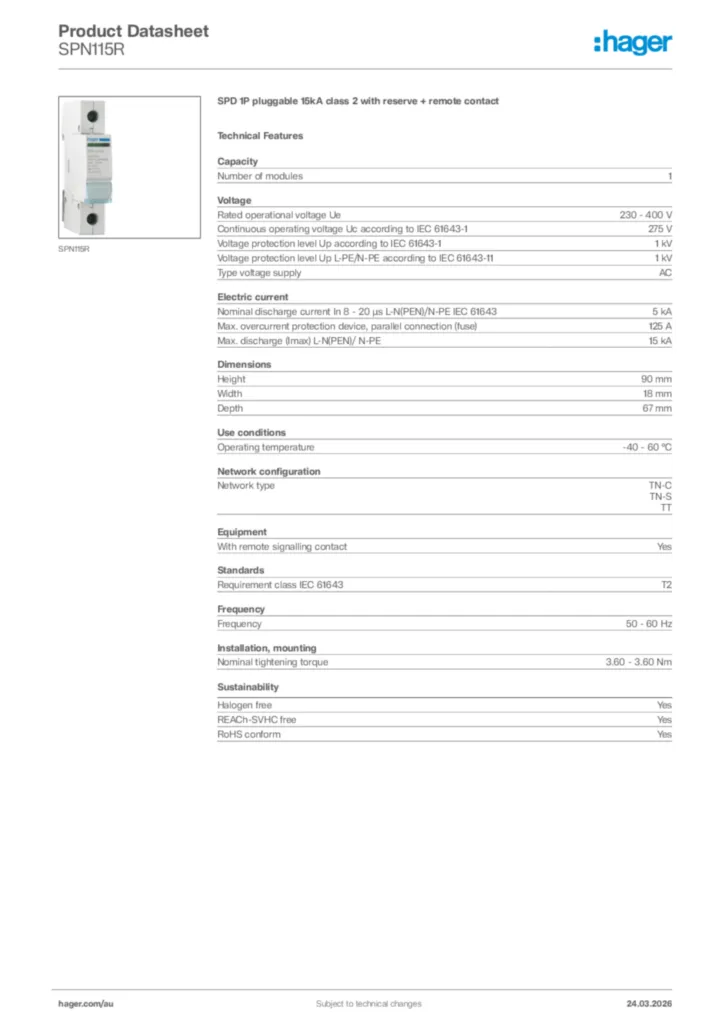

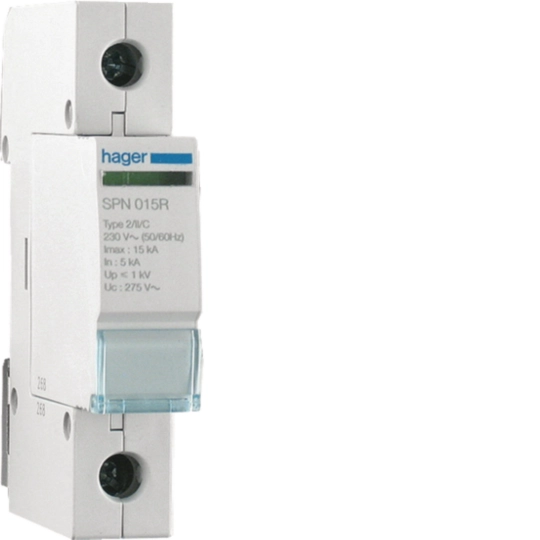

SPD 1P pluggable 15kA class 2 with reserve + remote contact SPN115R
Login to create a product list
You need to be logged into your myHager account to create product lists
No longer available
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Continuous operating voltage Uc according to IEC 61643-1275 V
-
Voltage protection level Up according to IEC 61643-11 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111 kV
-
Type voltage supplyAC
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 616435 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE15 kA
Dimensions
-
Height90 mm
-
Width18 mm
-
Depth67 mm
Use conditions
-
Operating temperature-40 - 60 °C
Network configuration
-
Network typeTN-C, TN-S, TT
Equipment
-
With remote signalling contactYes
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3,60 - 3,60 Nm
