SPD 1P pluggable 15kA class 2 with end of life indicator SPN115D
EAN
3250615660220
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Continuous operating voltage Uc according to IEC 61643-1275 V
-
Voltage protection level Up according to IEC 61643-11 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111 kV
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 616435 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE15 kA
Dimensions
-
Height90 mm
-
Width18 mm
-
Depth67 mm
Use conditions
-
Operating temperature-40 - 60 °C
Network configuration
-
Network typeTN, TT
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3,60 - 3,60 Nm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

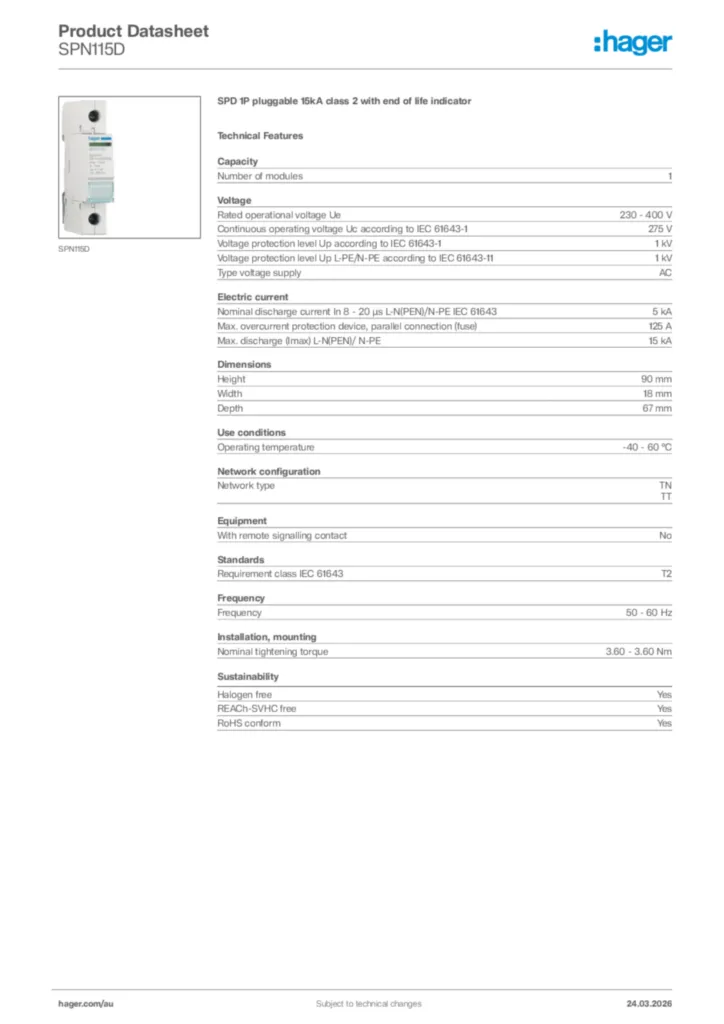

Hager Product data sheet SPN115D
SPD 1P pluggable 15kA class 2 with end of life indicator
PDF -
Installation manual
SPN115D/R, SPN140D/R, SPN140C, SPN165R
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2014-10-15
PDF820,81 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-11-09
PDF571,86 kB
