Cartridge 15kA 275V for pluggable SPD with reserve SPN015R
No longer available
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Voltage
-
Overvoltage category according to IEC 60947-13
-
Type voltage supplyAC
-
Continuous operating voltage Uc according to IEC 61643-1275 V
-
Voltage protection level Up according to IEC 61643-11 kV
-
Nominal voltage240 - 415 V AC ± 10%
Equipment
-
With remote signalling contactYes
Use conditions
-
Operating temperature-40 - 80 °C
-
Max. altitude2000 m
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Storage/transport temperature-40 - 80 °C
-
Air humidity protection5 - 95%
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height52,4 mm
-
Width17,5 mm
-
Depth55,3 mm
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeOn base element
Electric current
-
Follow current interrupting rating0,1 kA
-
Max. discharge current (Imax)15 kA
-
Nominal discharge current In5 kA
Installation, mounting
-
Suitable for indoor usageYes
Safety
-
Ingress Protection (IP) classIP20
Materials
-
MaterialPolyamide (PA)
-
ColourLight grey
-
RAL code7035
Network configuration
-
Network typeTN, TT
Use
-
Is accessibleYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

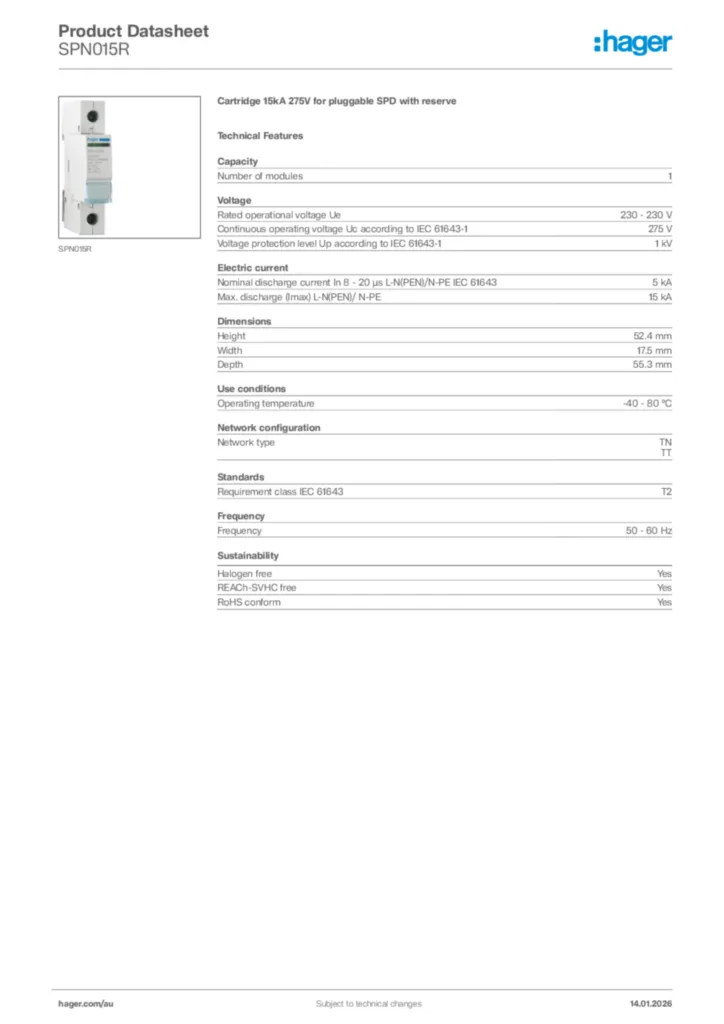

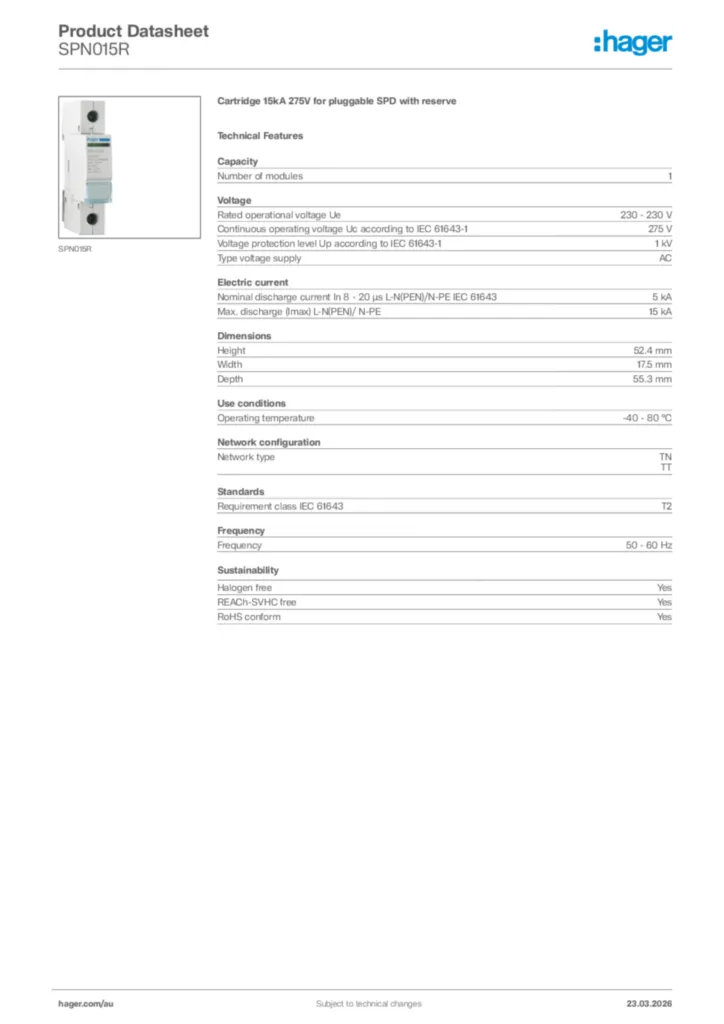

Hager Product data sheet SPN015R
