Digital voltmeter SM501
EAN
3250615635013
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
Precision class1%
Configuration
-
Number of modules4
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency45/65 Hz
Dimensions
-
Depth of installed product54 mm
-
Height of installed product90 mm
-
Width of installed product70 mm
Power
-
Power consumed3.5 VA
-
Total power loss under IN3.5 W
Measurement
-
Voltage measurement range0 to 500 V
-
Type of measuring instrumentvoltmeter
Installation, mounting
-
Mounting typedin-Rail
Connection
-
Connection cross-sect. flexible conductor6mm²
-
Connection cross-sect. rigid cable10mm²
-
Type of connectionwith screw
Equipment
-
Digits number3
Safety
-
REACH conformYes
-
RoHS conformYes
Use conditions
-
Operating temperature-10…55 °C
-
Storage/transport temperature-40…70 °C
Downloads
-
Product image
-
User brochure
Energy Meters Brochure
PDF15 MB -
Technical brochures
Energy Meters Specifications and Technical Guide
PDF1 MB -

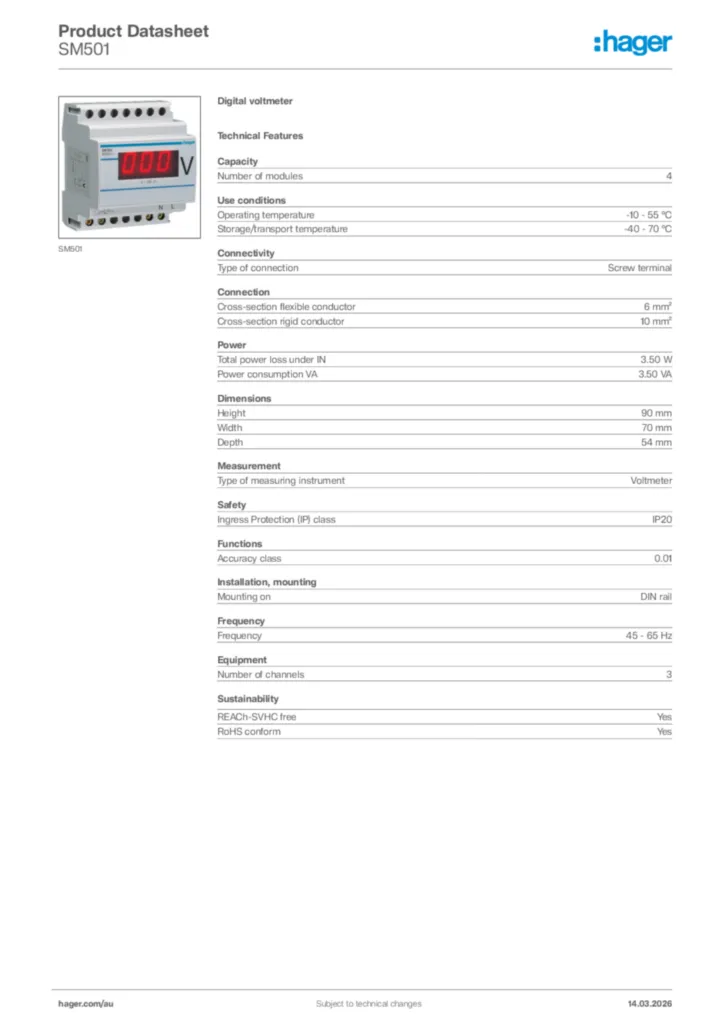

Product data sheet
