Analogue ammeter 0-100A indirect reading SM100
EAN
3250615631008
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
Precision class1.5%
Configuration
-
Number of modules4
Controls and indicators
-
Measurement scale100 A
Main electrical features
-
Frequency45/65 Hz
Voltage
-
Rated insulation voltage2000 V
Dimensions
-
Depth of installed product54 mm
-
Height of installed product85 mm
-
Width of installed product70 mm
Power
-
Power consumed1.1 VA
-
Total power loss under IN1.1 W
Installation, mounting
-
Modular versionYes
Connection
-
Connection cross-sect. flexible conductor1 / 6mm²
-
Connection cross-sect. rigid cable1,5 / 10mm²
Safety
-
REACH conformYes
-
RoHS conformYes
Use conditions
-
Operating temperature-25…50 °C
-
Storage/transport temperature-40…80 °C
Downloads
-
Product image
-
User brochure
Energy Meters Brochure
PDF15 MB -
Technical brochures
Energy Meters Specifications and Technical Guide
PDF1 MB -

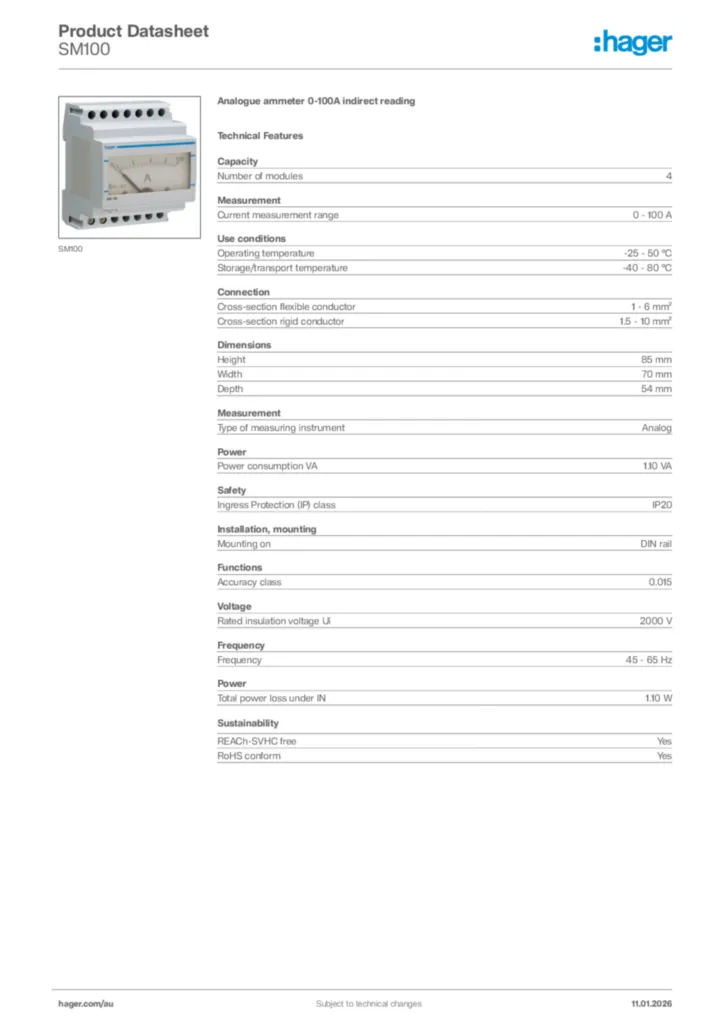

Product data sheet
