Hager The Hager 10A Key Switch is a modular DIN-rail control device for secure circuit switching. Operated only by key, it prevents unauthorized use and accidental activation. Rated 10A for reliable control of lighting, HVAC or small loads, it offers clear ON/OFF status and robust contacts. Its compact modular design simplifies installation and saves space in distribution boards for residential or commercial sites.
EAN
3250615616067
Packaging
1 Piece
Key-operated Modular Switch 10A SK606
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles2
-
Type of pole2P
Electric current
-
Rated current10 A
-
Rated conditional short-circuit current Icc with gl-gG fuses3 kA
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
Capacity
-
Number of modules3
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 50 Hz
Dimensions
-
Height85 mm
-
Width70 mm
-
Depth64 mm
Equipment
-
Number of NO contacts2
-
Number of NC contacts0
Use conditions
-
Operating temperature-10 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1 - 6 mm²
Power
-
Total power loss under IN1 W
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

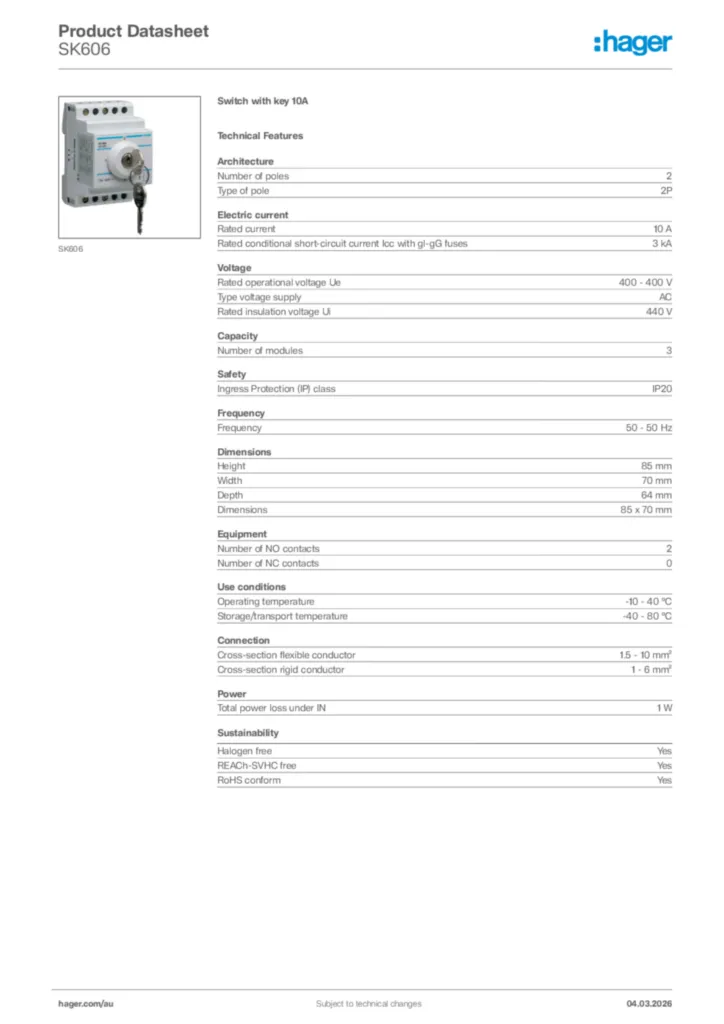

Hager Product data sheet SK606
Switch with key 10A
PDF -
Declaration of conformity
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2019-11-04
PDF115,04 kB
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2021-10-13
PDF133,67 kB
