Changeover switch 4DIRo SK604
EAN
3250615616043
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules3
Controls and indicators
-
Number of positions of the switch5
Main electrical features
-
Frequency50 Hz
Voltage
-
Rated insulation voltage690 V
Electric current
-
Rated current20 A
Dimensions
-
Depth of installed product64 mm
-
Height of installed product85 mm
-
Width of installed product70 mm
Power
-
Total power loss under IN1 W
Connection
-
Connection cross-sect. flexible conductor1,5 / 10mm²
-
Connection cross-sect. rigid cable1 / 6mm²
-
Type of connectionwith screw
Safety
-
REACH conformYes
-
RoHS conformYes
Use conditions
-
Operating temperature-10…40 °C
-
Storage/transport temperature-40…80 °C
Downloads
-

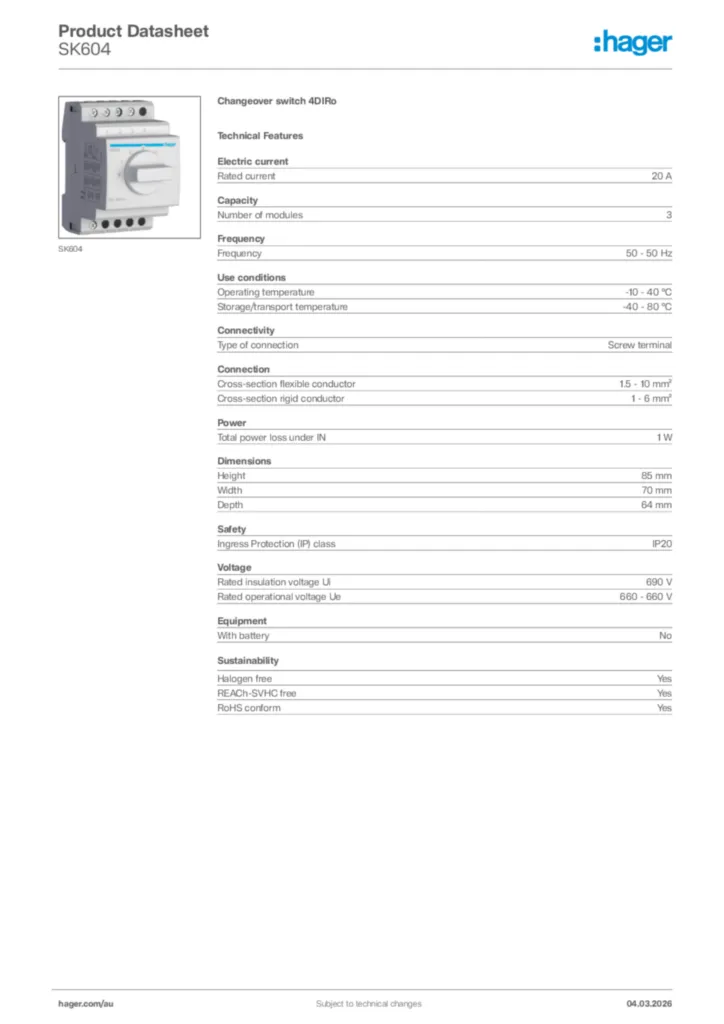

Product image
-
Declaration of conformity
Declaration of conformity for Inverter / Switch
PDF115 KB
Declaration of conformity for Inverter / Switch
PDF133 KB -
RoHS report
REACH-declaration 2023-10-20 (english)
PDF33 KB
RoHS-declaration 2023-10-20 (english)
PDF32 KB
More documentation
