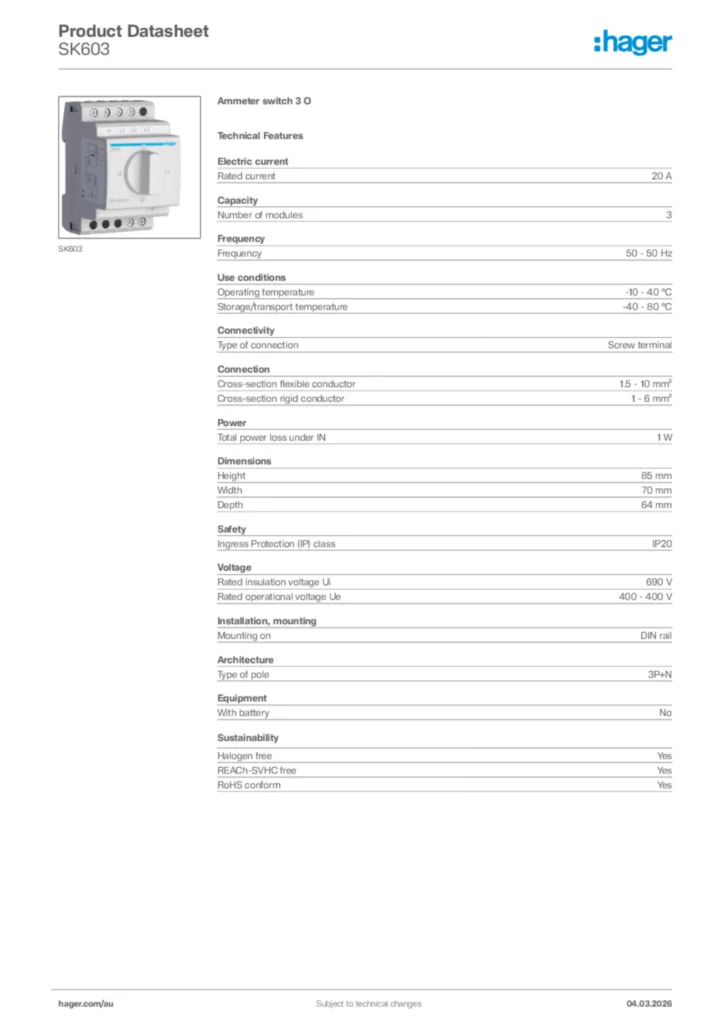

Ammeter switch 3 O SK603
EAN
3250615616036
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules3
Controls and indicators
-
Number of positions of the switch4
Main electrical features
-
Rated operational voltage Ue660 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage690 V
Electric current
-
Rated current20 A
Dimensions
-
Depth of installed product64 mm
-
Height of installed product85 mm
-
Width of installed product70 mm
Power
-
Total power loss under IN1 W
Network configuration
-
Network typetree-phase with neutral
Installation, mounting
-
Mounting typedin-Rail
Connection
-
Connection cross-sect. flexible conductor1,5 / 10mm²
-
Connection cross-sect. rigid cable1 / 6mm²
-
Type of connectionwith screw
Safety
-
REACH conformYes
-
RoHS conformYes
Use conditions
-
Operating temperature-10…40 °C
-
Storage/transport temperature-40…80 °C
