Hager The Hager 3-position Voltmeter Modular Switch enables safe selection of circuits for voltage monitoring across phases or phase-to-neutral in distribution boards. Its DIN-rail modular design saves space and speeds installation. Robust contacts ensure accurate, reliable readings, with clear indexing for quick operation. Ideal for panels in residential, commercial, and industrial applications.
EAN
3250615616029
Packaging
1 Piece
Voltmeter selector switch 3-position modular SK602
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current20 A
Capacity
-
Number of modules3
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Operating temperature-10 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1 - 6 mm²
Power
-
Total power loss under IN1 W
Dimensions
-
Height85 mm
-
Width70 mm
-
Depth64 mm
Safety
-
Ingress Protection (IP) classIP20
Installation, mounting
-
Mounting onDIN rail
Voltage
-
Rated insulation voltage Ui690 V
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

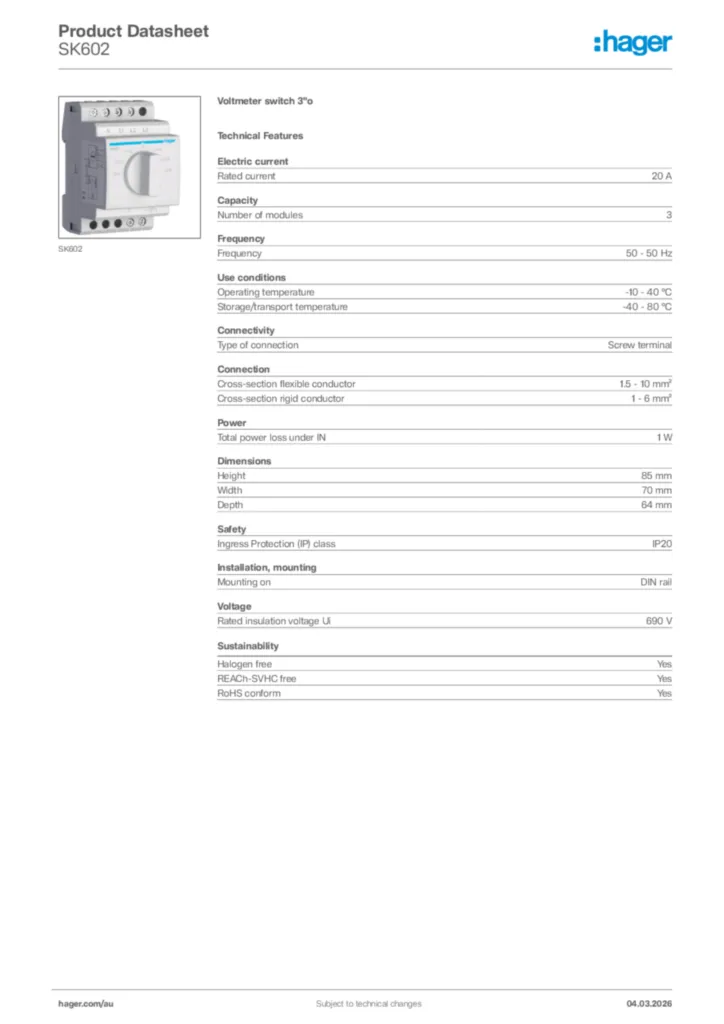

Product datasheet
Hager Product data sheet SK602
Voltmeter switch 3"o
PDF -
Declaration of conformity
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2019-11-04
PDF115,04 kB
Declaration of conformity for Inverter / Switch
Declaration of conformity International 2021-10-13
PDF133,67 kB
