2-pole, 25A Centre Off Modular Changeover Switch with Top Common Point SFT225

EAN

3250615510792

Packaging

1 Piece

Technical properties
Environmental value
Documentations
More products

Download the data sheet

Technical properties

Number of poles

2
Neutral position

Without neutral
Type of pole

2P

Rated current

25 A
Breaking capacity 400 V AC23A

529 A
Rated conditional short-circuit current Icc with gl-gG fuses

0,37 kA
Acceptable current rating AC21 category A

25 A
Acceptable current rating AC21 category B

25 A
Acceptable current rating AC22 category A

25 A
Acceptable current rating AC22 category B

25 A
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-3

0,52 kA
Rated short-time withstand current Icw 1s IEC 60947

0,37 kA

Nominal tightening torque

1,80 - 1,80 Nm
Type of bottom connection for modular devices

Screw terminal

Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

4000 V

Number of modules

2

Ingress Protection (IP) class

IP20

Frequency

50 - 60 Hz

Height

83 mm
Width

35 mm
Depth

70 mm

Number of NO contacts

0
Number of NC contacts

0

Operating temperature

-20 - 50 °C
Storage/transport temperature

-40 - 80 °C

Cross-section flexible conductor

1.5 - 10 mm²
Cross-section rigid conductor

1.5 - 16 mm²

Number of mechanical operations

200000
Electrical durability at nominal load in AC21 in operating cycles

25000
Electrical durability at nominal load in AC22 in operating cycles

25000

Total power loss under IN

1,80 W
Power loss per pole at In

0,90 W

Down connection alignment for modular devices

Shifted terminal
Top connection alignment for modular devices

Shifted terminal

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACH conform Yes

Downloads

Product image

Product Image SFT225

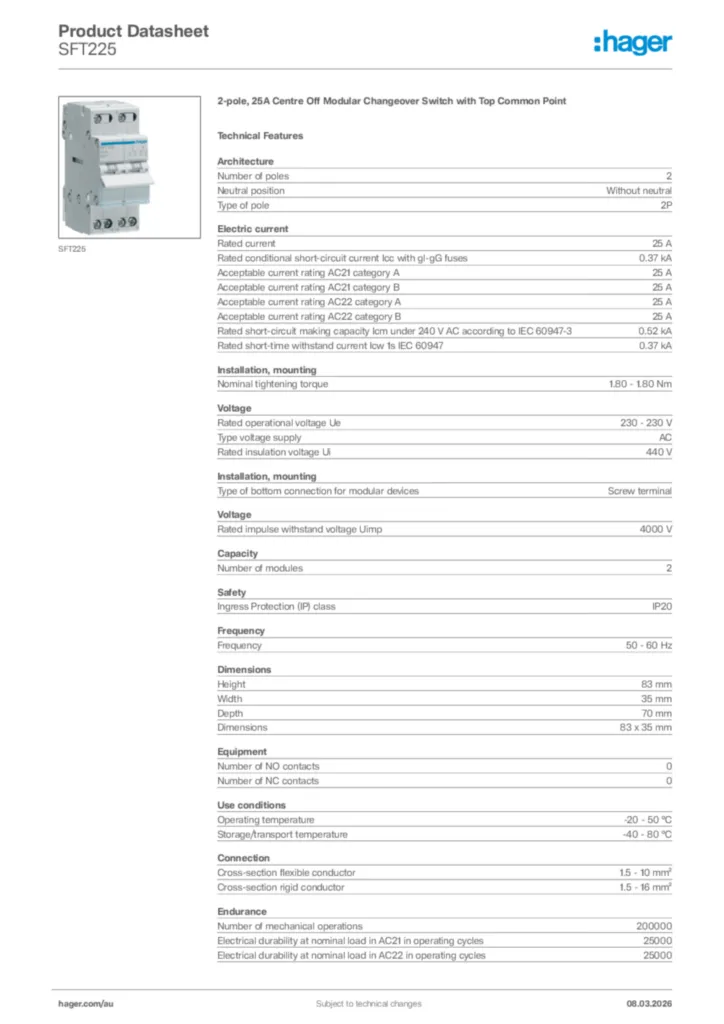

Product data sheet
