2-pole, 25A Centre Off Modular Changeover Switch with Bottom Common Point SFB225
EAN
3250615510808
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable.
Technical properties
Architecture
-
Number of poles2
-
Neutral positionWithout neutral
-
Type of pole2P
Electric current
-
Rated current25 A
-
Rated conditional short-circuit current Icc with gl-gG fuses0,37 kA
-
Acceptable current rating AC21 category A25 A
-
Acceptable current rating AC21 category B25 A
-
Acceptable current rating AC22 category A25 A
-
Acceptable current rating AC22 category B25 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30,52 kA
-
Rated short-time withstand current Icw 1s IEC 609470,37 kA
Installation, mounting
-
Nominal tightening torque1,80 - 1,80 Nm
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp4000 V
Capacity
-
Number of modules2
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth70 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts0
Use conditions
-
Operating temperature-20 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1.5 - 16 mm²
Endurance
-
Number of mechanical operations200000
-
Electrical durability at nominal load in AC21 in operating cycles25000
-
Electrical durability at nominal load in AC22 in operating cycles25000
Power
-
Total power loss under IN1,80 W
-
Power loss per pole at In0,90 W
Connectivity
-
Down connection alignment for modular devicesShifted terminal
-
Top connection alignment for modular devicesShifted terminal
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

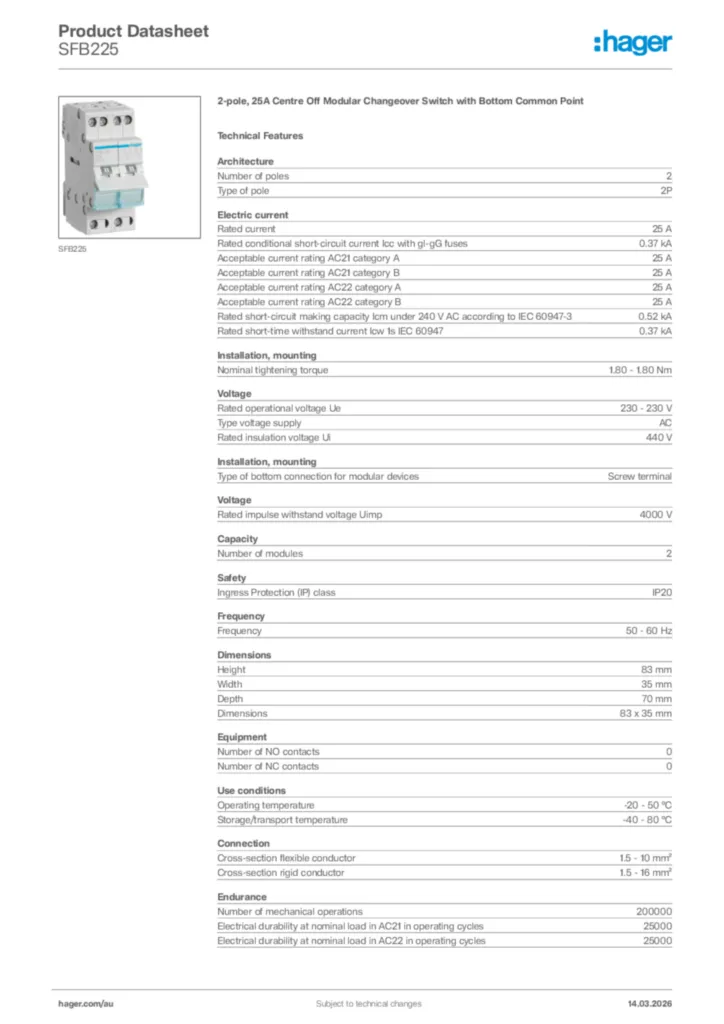

Hager Product data sheet SFB225
2-pole, 25A Centre Off Modular Changeover Switch with Bottom Common Point
PDF -
Product licence
Licence for NETHERLANDS
Product licence International 2024-08-09
PDF2,53 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-02-06
PDF990,73 kB
