4-pole, 63A Modular Switch with Red Toggle SBR463
EAN
3250615510419
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 1 products available -
Phase separation functions 1 products available -
Locking interlocking functions 1 products available -
Terminal cover 1 products available

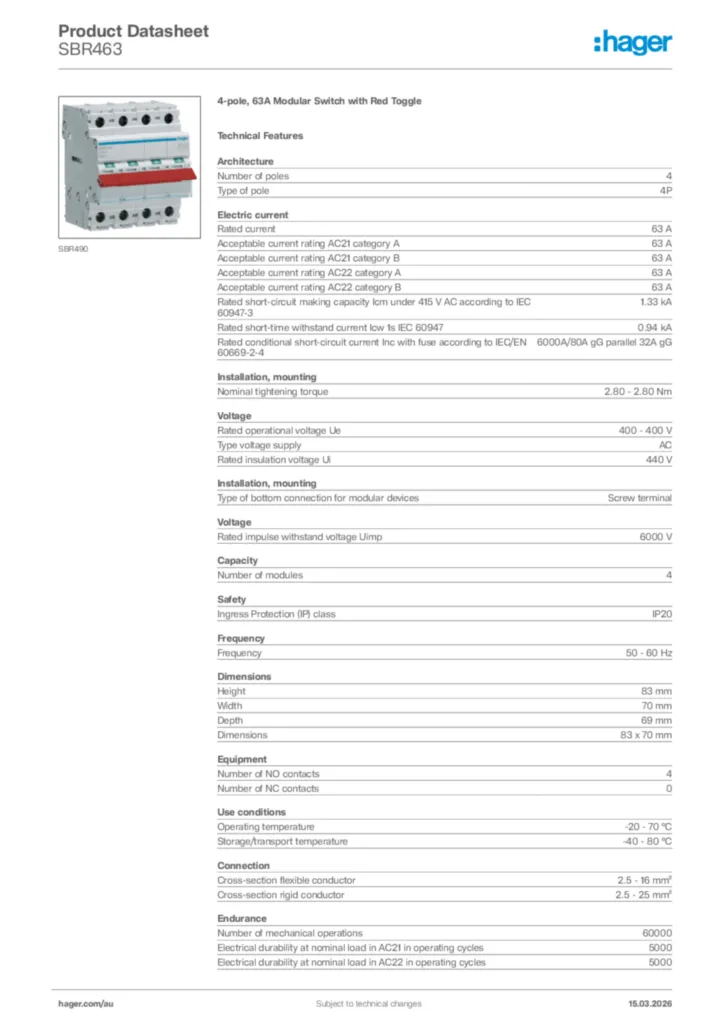

Technical properties
Architecture
-
Number of poles4
-
Neutral positionWithout neutral
-
Type of pole4P
Electric current
-
Rated current63 A
-
Breaking capacity 400 V AC23A1332 A
-
Rated conditional short-circuit current Icc with gl-gG fuses0,94 kA
-
Acceptable current rating AC21 category A63 A
-
Acceptable current rating AC21 category B63 A
-
Acceptable current rating AC22 category A63 A
-
Acceptable current rating AC22 category B63 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-31,33 kA
-
Rated short-time withstand current Icw 1s IEC 609470,94 kA
Installation, mounting
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp6000 V
Capacity
-
Number of modules4
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width70 mm
-
Depth69 mm
Equipment
-
Number of NO contacts4
-
Number of NC contacts0
Use conditions
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor2.5 - 16 mm²
-
Cross-section rigid conductor2.5 - 25 mm²
Endurance
-
Number of mechanical operations60000
-
Electrical durability at nominal load in AC21 in operating cycles5000
-
Electrical durability at nominal load in AC22 in operating cycles5000
Power
-
Total power loss under IN9,20 W
-
Power loss per pole at In2,30 W
Connectivity
-
Down connection alignment for modular devicesAligned terminal
-
Top connection alignment for modular devicesAligned terminal
