Fuse carrier 1P 32A 415V BS88 1M LS201
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical properties
Dimensions
-
Height83 mm
-
Width18 mm
-
Depth75 mm
Architecture
-
Number of poles1
-
Type of pole1P
Electric current
-
Rated current32 A
-
Rated current of fuse cartridge2 A, 4 A, 6 A, 8 A, 10 A, 16 A, 20 A, 25 A, 32 A
Capacity
-
Number of modules1
Internal use only
-
Number of half modules of 17,5 mm2
Installation, mounting
-
Nominal tightening torque2,20 - 2,20 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN3,63 W
Voltage
-
Type voltage supplyAC/DC
Safety
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of input and output with screws, for flexible conductors0,75 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
Cover, door
-
InterlockableNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

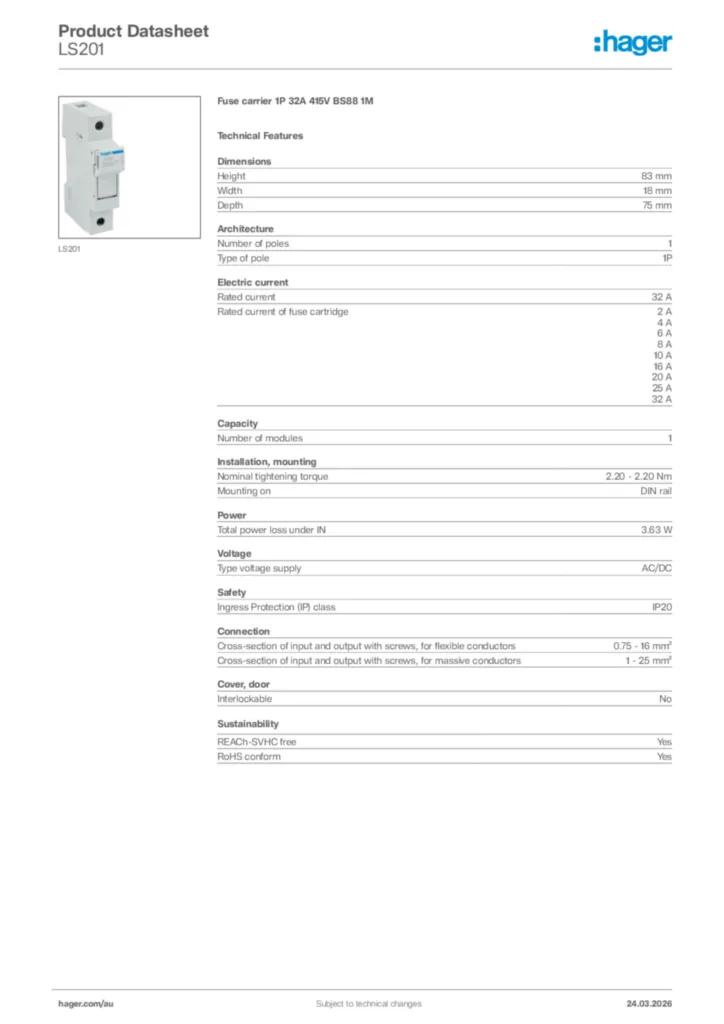

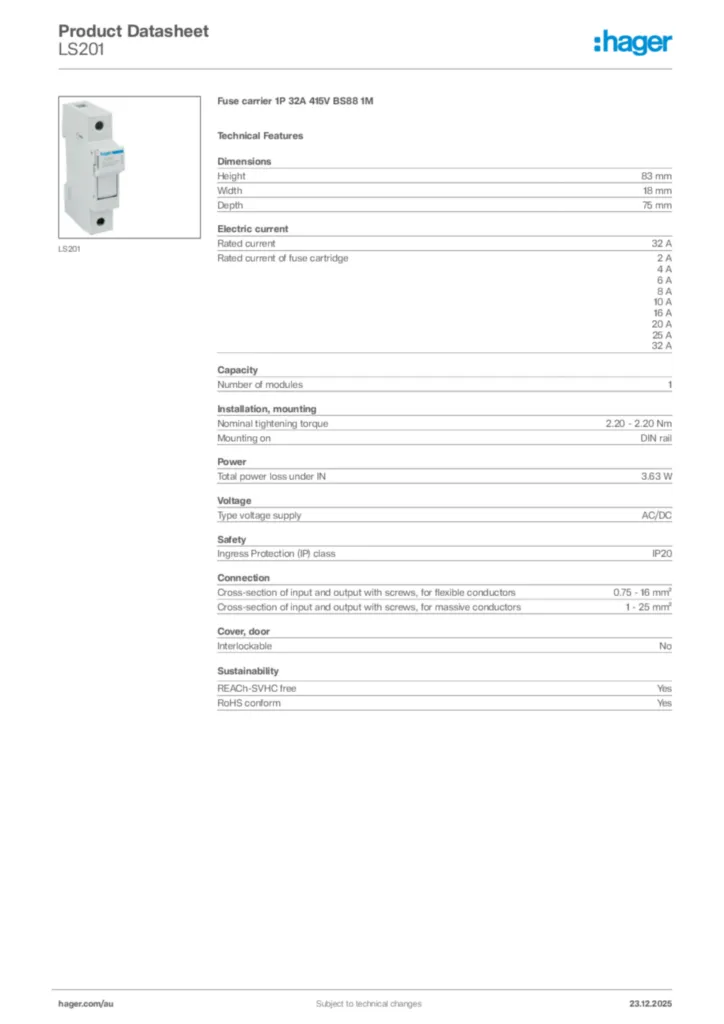

Hager Product data sheet LS201
Fuse carrier 1P 32A 415V BS88 1M
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2019-09-17
PDF126,64 kB
Declaration
Declaration of conformity International 2023-03-14
PDF894,70 kB
