            JKM02 - Multifunction measurement device DIN rail 2x3-Phase RS485
            JKM02 - Multifunction measurement device DIN rail 2x3-Phase RS485

            Multifunction measurement device DIN rail 2x3-Phase RS485

            JKM02

            JKM02 - Multifunction measurement device DIN rail 2x3-Phase RS485
            JKM02 - Multifunction measurement device DIN rail 2x3-Phase RS485
            • DIN rail-­mounted devices

            Multifunction measurement device DIN rail 2x3-Phase RS485 JKM02

            EAN
            5015654793500
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products
            Download the data sheet

            Technical properties

            Archi­tec­ture
            • Bus system
              MODBUS
            • Type of pole
              4P
            Capa­city
            • Number of modules
              4
            Dimen­sions
            • Height
              90 mm
            • Width
              70 mm
            • Depth
              62 mm
            Equip­ment
            • Type of pulse gener­ator
              Elec­trical
            Compat­ib­ility
            • Suit­able for
              Purchase
            Connec­tion
            • Connect­or/plug type Bus system
              Pulse, RS485
            Install­a­tion, mounting
            • Mounting on
              DIN rail
            Meas­ure­ment
            • Meas­uring system
              Meas­ure­ment trans­former
            • Type of meas­uring instru­ment
              Elec­tronic
            • Meas­ure­ment range voltage Ph-N
              60 - 300 V
            • Meas­ure­ment range voltage Ph-Ph
              104 - 520 V
            • Frequency meas­uring range
              45 - 65 Hz
            Func­tions
            • Accuracy class
              B
            • Tariff type
              One-tariff
            Safety
            • Ingress Protec­tion (IP) class
              IP20
            Use condi­tions
            • Oper­ating temper­ature
              -10 - 55 °C
            • Stor­age/trans­port temper­ature
              -20 - 75 °C
            Frequency
            • Frequency
              45 - 65 Hz

            Environmental value

            We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

            RoHS conform Yes
            REACH conform Yes

            Certifications and documents

            REACH declaration JKM02 (english)
            PDF
            103,10 kB
            RoHS declaration JKM02 (english)
            PDF
            103,59 kB

            Downloads

            • Product image

              Image JKM02  | Hager Australia

              Product Image JKM02

            • Installation manual

              Image Installation manual en-GB 2018-07-30  | Hager Australia

              Installation manual en-GB 2018-07-30

              PDF
              9,69 MB
            • Product attachment

              Image Product attachment International 2020-01-01  | Hager Australia

              Product attachment International 2020-01-01

              XLS
              61,50 kB

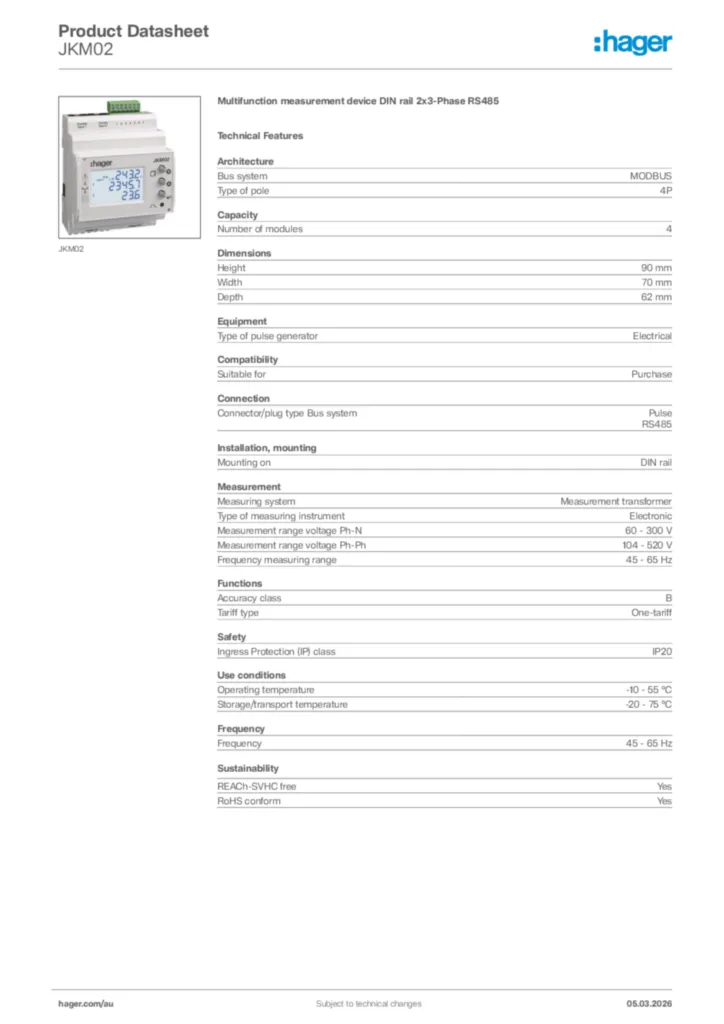

            • Product data sheet

              Image UK_MD_TDS_JKM02  | Hager Australia

              UK_MD_TDS_JKM02

              Product data sheet en-GB 2025-05-19

              PDF
              1,18 MB
            • Declaration of conformity

              Image Declaration  | Hager Australia

              Declaration

              Declaration of conformity International 2021-09-29

              PDF
              276,98 kB
              Image Declaration  | Hager Australia

              Declaration

              Declaration of conformity International 2021-09-29

              PDF
              269,32 kB
              Image Declaration of conformity International 2023-12-20  | Hager Australia

              Declaration of conformity International 2023-12-20

              PDF
              302,50 kB
              Image Declaration of conformity International 2023-12-20  | Hager Australia

              Declaration of conformity International 2023-12-20

              PDF
              296,11 kB
