    • HYS010H
    EAN
    3250613151515
    Packaging
    1 Piece
    • MCCBs - Accessories

    Straight terminal extension P160 4P lug version HYS010H

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Straight terminal extension P160 4P lug version

    HYS010H

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Elec­tric current
    • Rated current
      160 A
    Archi­tec­ture
    • Number of poles
      4

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration HYS010H
    PDF
    Hager RoHS report HYS010H
    PDF

    Downloads

    • Product image

      Image HYS010H | Hager Australia

      Product Image HYS010H

    • Product datasheet

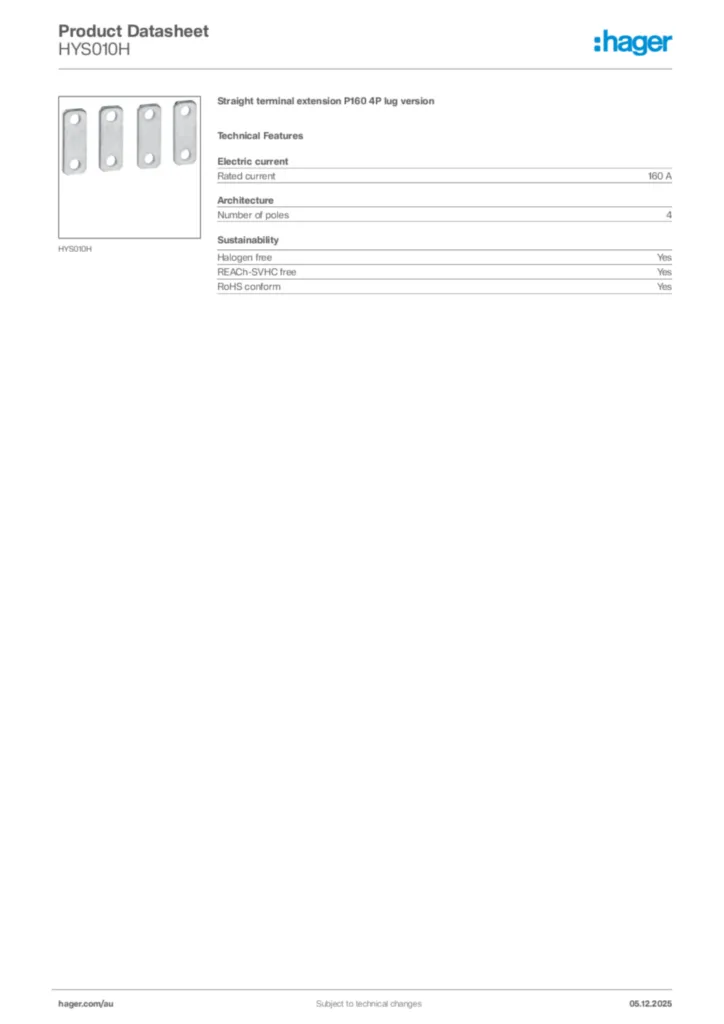

      Image Hager Product data sheet HYS010H | Hager Australia

      Hager Product data sheet HYS010H

      Straight terminal extension P160 4P lug version

      PDF

    • Installation manual

      Image Manual for moulded case circuit breaker h3+ P160 (Date: 2020-03) | Hager Australia

      Manual for moulded case circuit breaker h3+ P160 (Date: 2020-03)

      Installation manual International 2016-03-09

      PDF
      4,21 MB

    • Handbook

      Image Technical catalogue | Hager Australia

      Technical catalogue

      h3+ Moulded Case Circuit breakers up to 630A

      PDF
      48,86 MB
