Hager The Hager Spring Charging Motor 100-130 V DC for HW2/4 (MO) ensures fast, reliable charging of operating springs for motorized switchgear, enabling remote closing. It runs on 100-130 V DC (2.3 A), offers 450 V insulation and 6 kV impulse withstand, and operates from −25 to 70 °C for robust use in demanding environments. No auto-reset function.
EAN
3250613183837
Packaging
1 Piece
Spring charging motor 100-130V DC 2.3A MO for HW2/4, Uimp 6kV HWX713H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current2,30 A
Voltage
-
Type voltage supplyDC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage DC100 - 130 V
Use conditions
-
Operating temperature-25 - 70 °C
Functions
-
With auto reset functionNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

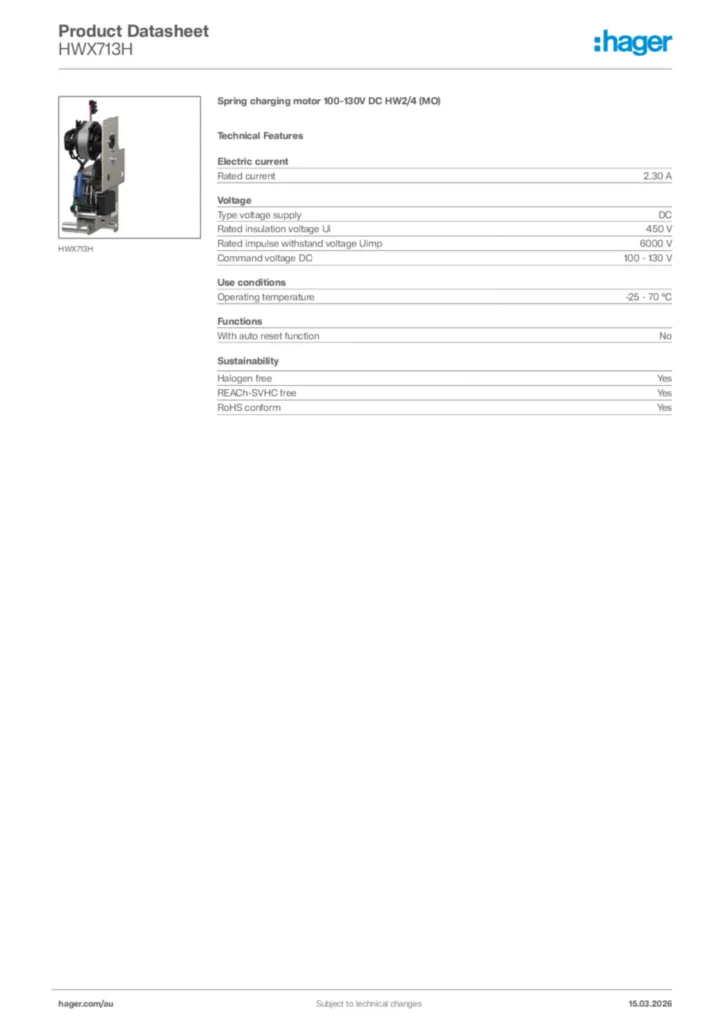

Hager Product data sheet HWX713H
Spring charging motor 100-130V DC HW2/4 (MO)
PDF -
Instruction manual
Instruction manual International 2024-06-17
PDF7,48 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
More documentation
