Hager The Hager Spring Charging Motor 48V DC for HW2/4 (MO) automates charging of operating springs for fast, dependable breaker closing and remote control in LV panels. It runs on 48 V DC command, draws 4.2 A, and offers 450 V insulation and 6 kV impulse withstand for robustness. Wide -25…70°C range ensures reliable service in demanding environments.
EAN
3250613183820
Packaging
1 Piece
Spring charging motor 48V DC 4.2A Ui 450V Uimp 6kV HW2/4 HWX712H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current4,20 A
Voltage
-
Type voltage supplyDC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage DC48 - 48 V
Use conditions
-
Operating temperature-25 - 70 °C
Functions
-
With auto reset functionNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

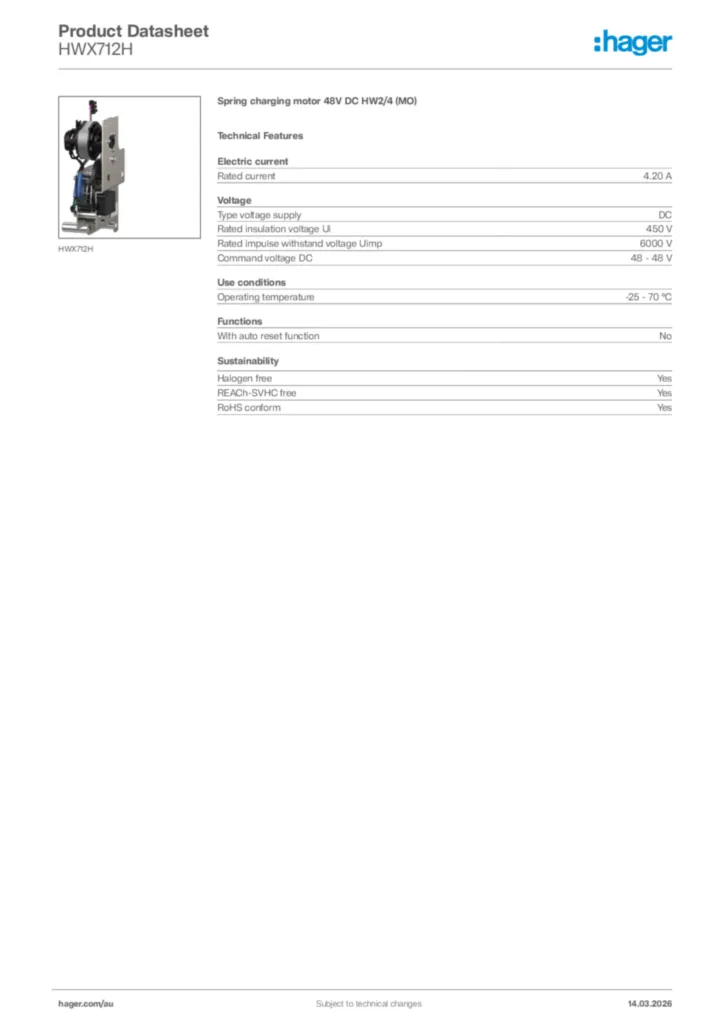

Hager Product data sheet HWX712H
Spring charging motor 48V DC HW2/4 (MO)
PDF -
Instruction manual
Instruction manual International 2024-06-17
PDF7,48 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
