Hager The Hager Spring Charging Motor 380-400 V AC 50/60 Hz for HW2/4 (MO) automates energy storage for closing operations of compatible switchgear. Drawing 0.60 A, it operates on 380-400 V AC, 50/60 Hz, with 450 V insulation and 6 kV impulse withstand, and a -25 to +70 °C range. Ideal for reliable, rapid spring recharging in panels requiring remote or frequent operation.
EAN
3250613183783
Packaging
1 Piece
Spring charging motor 380-400V AC 50/60Hz 0.6A Ui450V Uimp6kV for HW2/4 HWX015H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current0,60 A
Voltage
-
Type voltage supplyAC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage AC380 - 400 V
Use conditions
-
Operating temperature-25 - 70 °C
Frequency
-
Frequency50 - 60 Hz
Functions
-
With auto reset functionNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

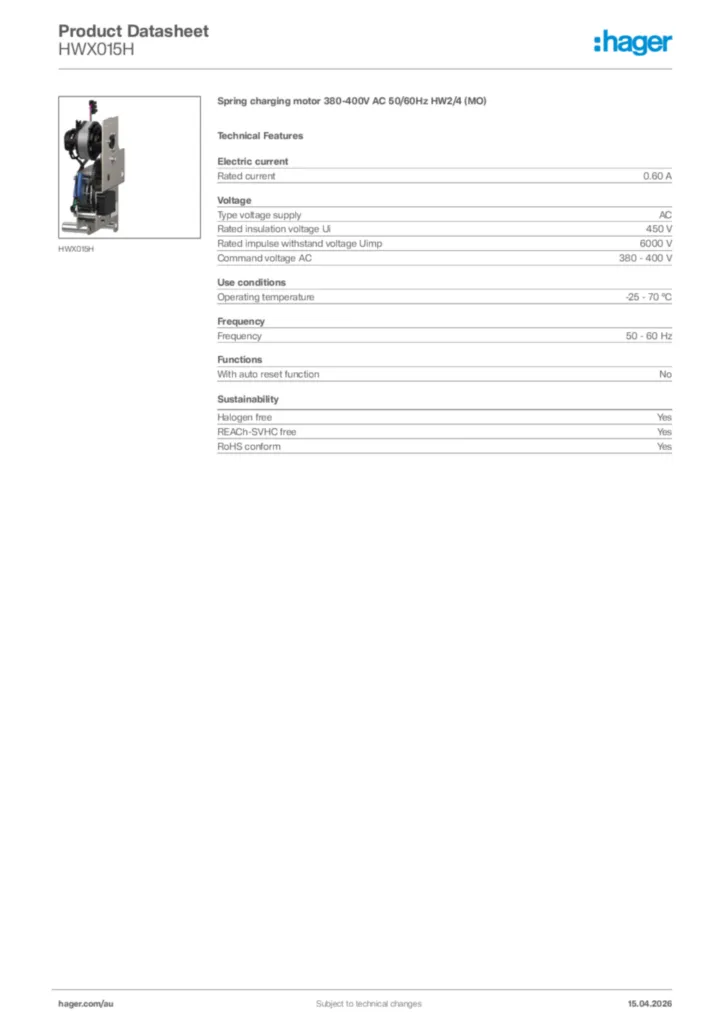

Hager Product data sheet HWX015H
Spring charging motor 380-400V AC 50/60Hz HW2/4 (MO)
PDF -
Instruction manual
Instruction manual International 2024-06-17
PDF7,48 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
More documentation
