Hager The Hager Spring Charging Motor 48 V AC 50/60 Hz for HW2/4 (MO) automatically charges the closing springs of compatible breakers, enabling dependable remote operation and rapid reclosure. Rated 4.2 A with 450 V insulation and 6 kV impulse withstand, it operates from -25 to 70°C. 48 V AC command input, 50/60 Hz. Robust and compact for switchgear panels; no auto-reset function.
EAN
3250613183752
Packaging
1 Piece
Spring charging motor 48V AC 50/60Hz 4.2A for HW2/4 (MO) HWX012H
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current4,20 A
Voltage
-
Type voltage supplyAC
-
Rated insulation voltage Ui450 V
-
Rated impulse withstand voltage Uimp6000 V
-
Command voltage AC48 - 48 V
Use conditions
-
Operating temperature-25 - 70 °C
Frequency
-
Frequency50 - 60 Hz
Functions
-
With auto reset functionNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

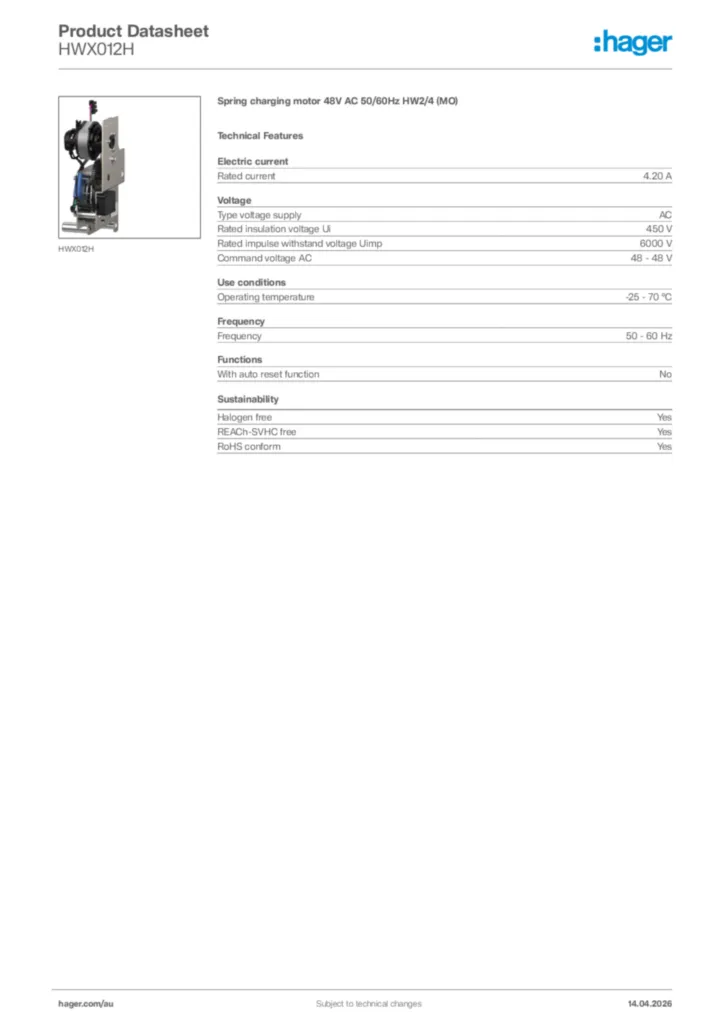

Hager Product data sheet HWX012H
Spring charging motor 48V AC 50/60Hz HW2/4 (MO)
PDF -
Instruction manual
Instruction manual International 2024-06-17
PDF7,48 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF413,59 kB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-11-04
PDF418,76 kB
