Circular Section Torroid 105mm For Type A Earth Leakage Relay HR703
EAN
3250613281397
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 2 products available
Technical properties
Dimensions
-
Height33 mm
Power
-
Total power loss under IN0
Safety
-
Ingress Protection (IP) classIP20
Voltage
-
Rated impulse withstand voltage Uimp4000 V
Connection
-
Type of contacts1NO
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

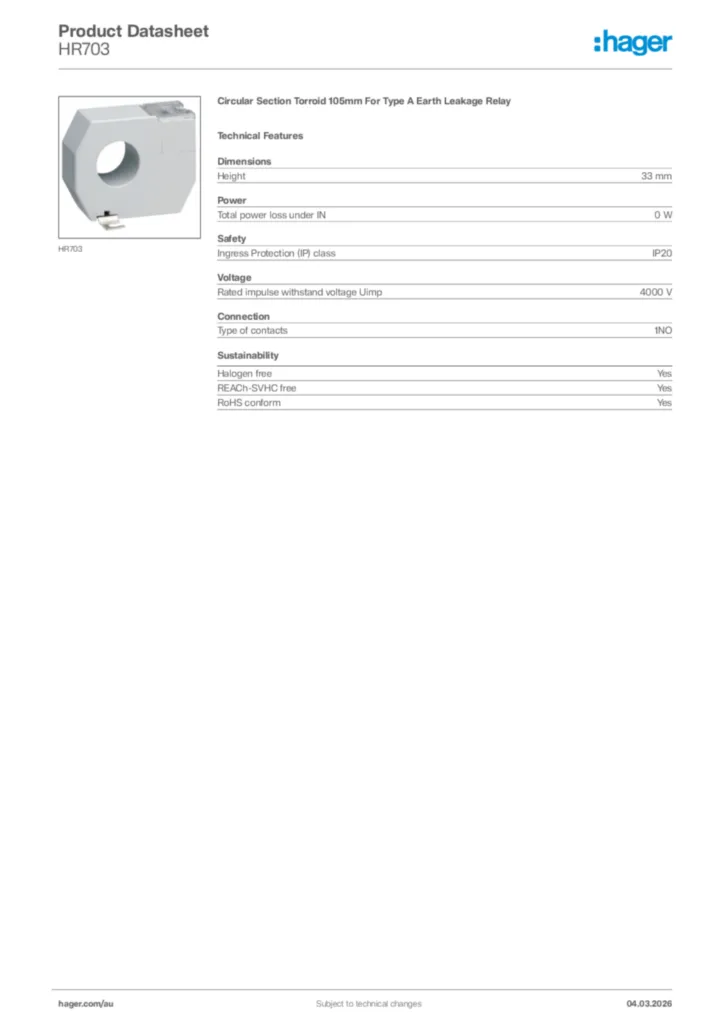

Hager Product data sheet HR703
Circular Section Torroid 105mm For Type A Earth Leakage Relay
PDF -
Installation manual
Tore pour relais différentiel HR701_702_703_704_705
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nn-NO 2020-01-01
PDF285,83 kB -
Product data sheet
UK_PD_TDS_Torroids.pdf
Technical data sheet including torroid selection chart.
PDF196,25 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-22
PDF145,54 kB
Declaration
Declaration of conformity International 2022-04-13
PDF943,64 kB
