EARTH LEAKAGE RELAY 0.03-10A TIME DELAY 50% LED HR520
EAN
3250613281328
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated residual operating current Idn30 mA, 100 mA, 300 mA, 500 mA, 1000 mA, 3000 mA, 10000 mA
-
Toroid's: Allowed overload30 kA/100 ms
Equipment
-
With earth leakage toroidYes
Safety
-
Residual current typeA
Dimensions
-
Maximum connection distance between receiver and transmitter25 m und 50 m twisted pair
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Notice HR510, HR520 FR, DE, GB, ES, PT
Installation manual en-GB, es-ES, fr-FR, de-DE, pt-PT 2020-01-01
PDF537,14 kB -

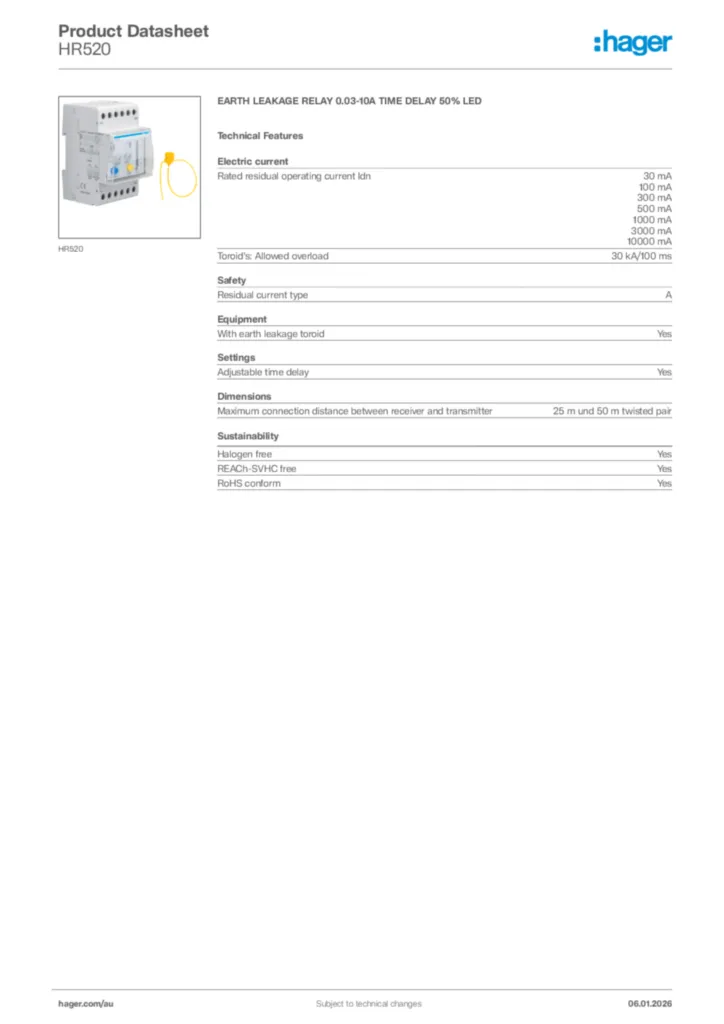

Product data sheet
UK_PD_TDS_EARTHFAULTRELAY.pdf
Technical data sheet including characteristics for earth fault relays.
PDF95,85 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-22
PDF145,54 kB
Declaration
Declaration of conformity International 2022-04-13
PDF943,64 kB
More documentation
Discover more of this product range
-
5
-
1

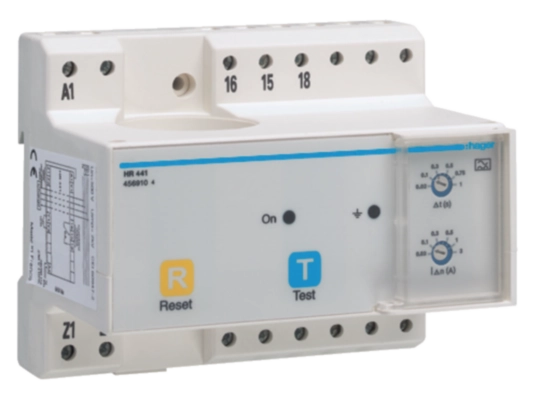

HR441EARTH LEAKAGE RELAY 0.03-3A TIME DELAY TORROID 35MM -
