EAN

3250613281304

Packaging

1 Piece

Earth Leakage Relay 0.3A instantaneous Trip Type A HR502

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

Download the data sheet

Technical properties

Rated residual operating current Idn

300 mA
Toroid's: Allowed overload

30 kA/100 ms

With earth leakage toroid

Yes

Residual current type

A HI

Time delay of residual current

0
Adjustable time delay

No

Maximum connection distance between receiver and transmitter

25 m und 50 m twisted pair

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Certifications and documents

REACH declaration HR502

PDF

RoHS report HR502

PDF

Downloads

Product image

Product Image HR502

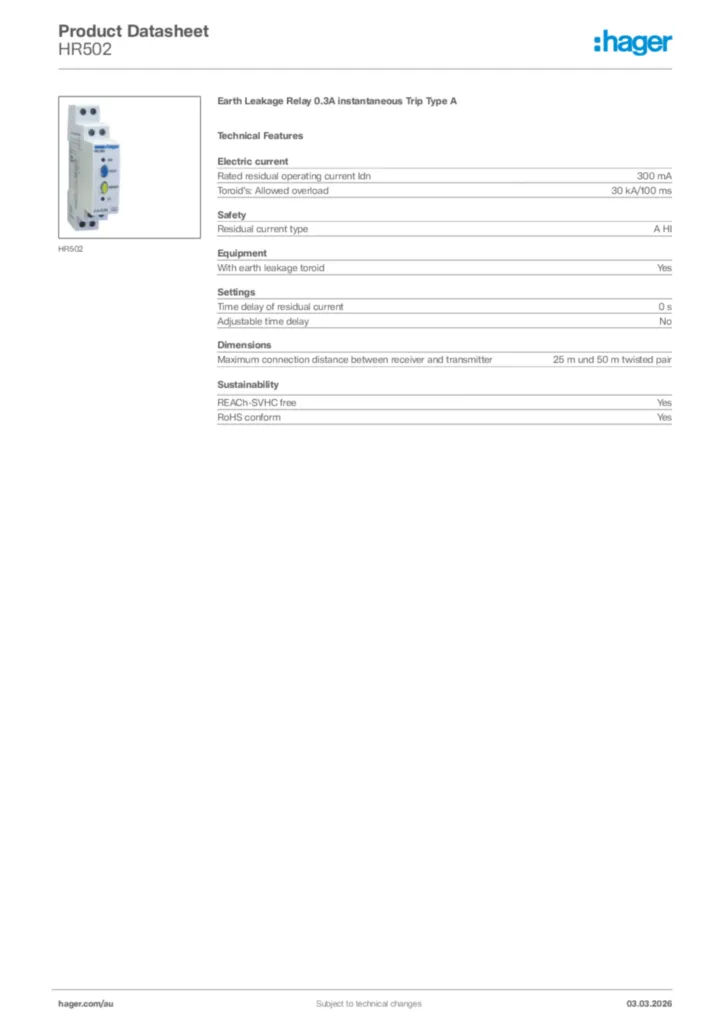

Product datasheet

Hager Product data sheet HR502

Earth Leakage Relay 0.3A instantaneous Trip Type A

PDF
Installation manual

Notice HR500, HR502 FR, DE, GB, ES, PT

Installation manual en-GB, es-ES, fr-FR, de-DE, pt-PT 2020-01-01

PDF

166,57 kB
Product data sheet

UK_PD_TDS_EARTHFAULTRELAY.pdf

Technical data sheet including characteristics for earth fault relays.

PDF

95,85 kB
Declaration of conformity

Declaration

Declaration of conformity International 2021-11-22

PDF

145,54 kB

Declaration

Declaration of conformity International 2022-04-13

PDF

943,64 kB
